Annilte Paper Tube Winding Flat Belt For Paper Core Machine
Our belts are made of nylon canvas and rubber. Nylon canvas has high tensile strength, and rubber has good characteristics of wear-resistance, oil-resistance, heat-resistance and skid-resistance.
Width of our belts: 25mm~450mm (if there are special types, please contact us)
Thickness of our belts: 3mm~12mm (if there are special types, please contact us)
|
Width
|
Layer number
|
Width tolerance
|
|
20,25,30,40,45,50,55,60
|
3-4layers
|
+-2
|
|
65,70,75,80,90,100,125
|
3-6
|
+-3
|
|
140,160,180,200,224,250
|
4-6
|
+-4
|
|
288,300,315,400,450,550,600
|
4-10
|
+-5
|
|
Tensile strength
|
Longitudinal minimum
|
Transverse minimum
|
|
190
|
190
|
75
|
|
240
|
240
|
95
|
|
290
|
290
|
115
|
|
340
|
340
|
130
|
|
385
|
385
|
225
|
|
425
|
425
|
250
|
|
450
|
450
|
|
|
500
|
500
|
Top 5 Pain Points for Paper Core Producers – And How Annilte Solves Them
1. Belt Stretching Leading to Poor Tension Control
Most standard flat belts stretch over time, causing slippage and uneven tube hardness.
4 Annilte solution: Our flat belts are manufactured with low-elongation polyester or aramid tension members – near-zero stretch ensures consistent winding tension for every tube.
2. Short Belt Life Due to Abrasion & Heat
Continuous high-speed winding generates friction and heat, especially on machines running at 200+ m/min.
4 Annilte solution: High-abrasion-resistant TPU/PU compound surface. Tested for over 10,000 hours on continuous duty.
3. Incompatibility with Original Equipment
Many aftermarket belts don’t match the OEM specifications for brand-name winders.
4 Annilte solution: We provide direct replacements for major machine brands (see below). No modifications needed.
4. Frequent Belt Tracking Issues
Belts that drift cause edge damage to paper strips and increase waste.
4 Annilte solution: Precision-ground edges and optional guide profiles ensure perfect tracking on crowned pulleys or grooved rollers.
5. High Replacement & Labor Costs
Changing a belt on a paper core machine means stopping production – sometimes for hours.
4 Annilte solution: Longer interval between replacements (up to 3x longer than economy belts) reduces total cost of ownership.

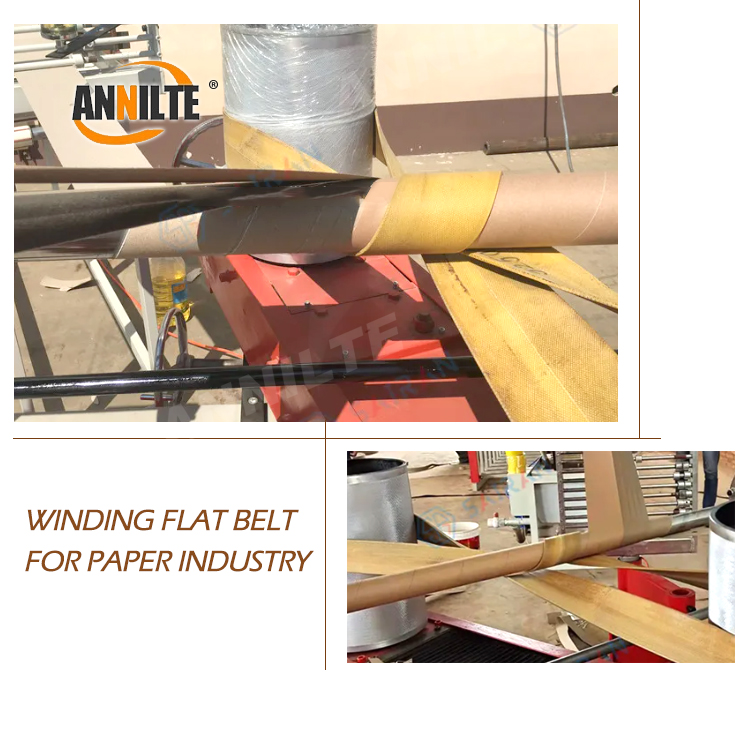

Application
Annilte winding flat belts are mainly used in paper tube making machine, paper tube winding machine, spiral paper making machine, automatic paper tube making machine, coiling machine and some other manufacturing machines.
