Heat resistant polyurethane ep150 1200mm 5 ply rubber conveyor belt for stone crusher

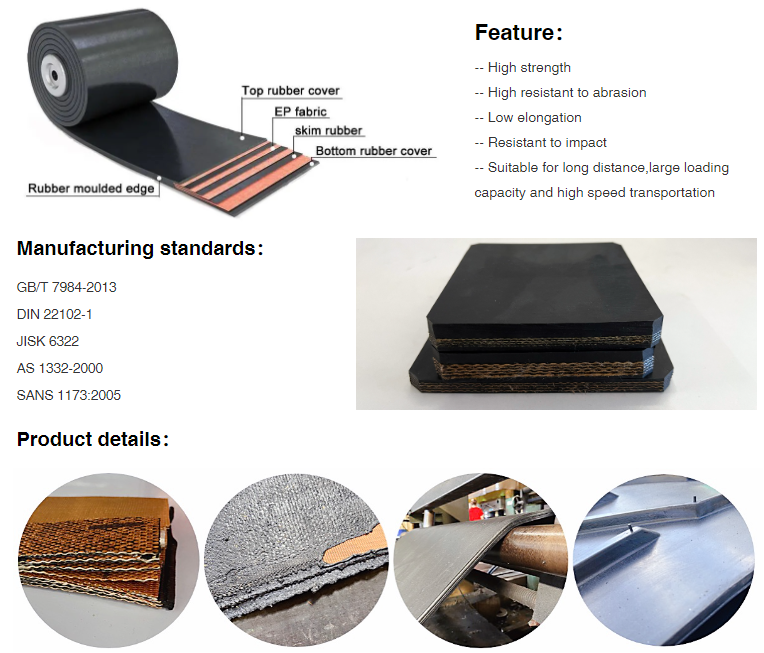

A rubber conveyor belt is a mechanical device used to transport goods, and its working principle is similar to that of a car belt. The rubber conveyor belt is covered with a layer of rubber material, and there are some layers of steel wire ropes or other materials woven with a certain strength. The operation principle of the rubber conveyor belt is that the object is placed on the rubber conveyor belt, and then the movement of the rubber conveyor belt is used to transport the object to the destination.
|
Cover Rubber Tensile
|
8MPA,10MPA,12MPA,15MPA,
18MPA,20MPA,24MPA,26MPA
|
|||
|
Belt width/length
|
400-2200mm,18-96inch
|
10-500m
|
||
|
Top/Bottom cover thickness
|
2+2, 3+1.5, 4+2, 4+1.5, 4+3, 5+1.5,etc
|
|||
|
Belt thickness
|
3mm,4mm,5mm,6mm,7mm,8mm,9mm,
10mm,12mm,15mm,20mm,25mm
|
|||
|
Tensile strength options
|
EP315/3,EP400/3,EP500/3,EP600/3,EP400/4,EP500/4,EP600/4
EP500/5,EP1000/5,EP1250/5,EP600/6,EP1200/6
|
|||
|
Belt edge
|
Mound edge or cut edge
|
|||

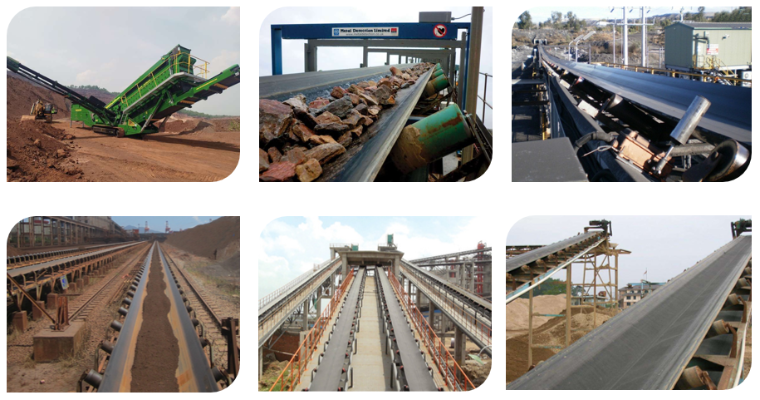

Application
