Annilte nomex endless felt belt for heat transfer printing with stable quality

Our felt is made of 100% Nomex fiber, it is one of the import part of the Roller Heat Press Machine, we choose the best felt in China, and use our 20 years experience to guide you install and maintain the felt.

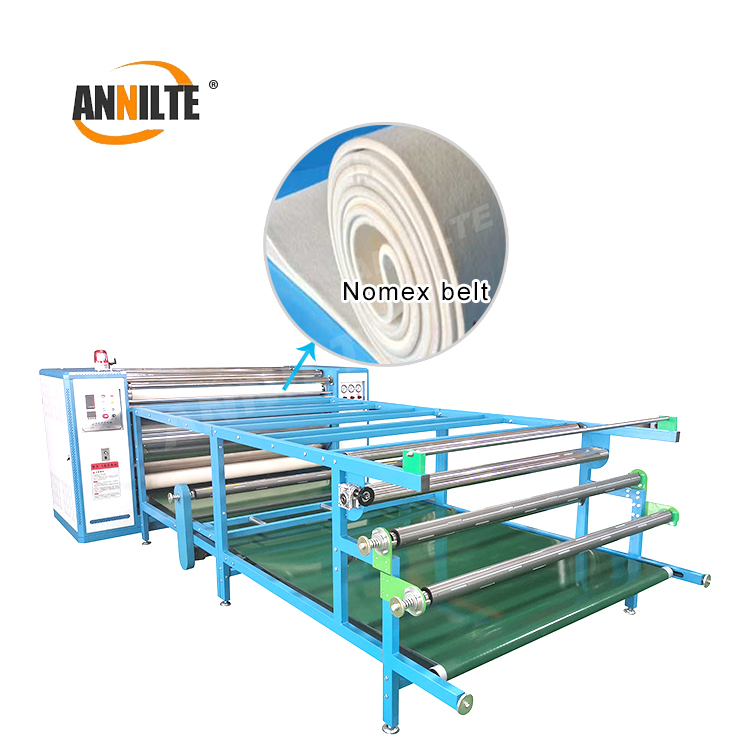

Heat transfer printing felts also called Nomex endless Felt, Calender heat press felt, sublimation heat press blanket, It is made of 100% aramid fiber (nomex). They are the most important component of the heat transfer printing machines which print the pattern from paper to fabric helping with pressure and temperature.

  • Thickness: 8-10mm
  • Working temperature: 180℃-280℃
  • Size: Any size is ok
  • Material: 100% Nomex
  • Product Detail

    Product Tags

    Material
    100% nomex
    Density
    2200g/m2~4400g/m2
    Thickness
    6mm~12mm
    Width
    600mm~3800mm,OEM
    Inner circumference
    1200mm~30000mm,OEM
    Thermal shrinkage
    ≤1%
    Work temperature
    200℃~260℃
    Working life
    4000 hours
    Packing
    Plastic film,Cushion,Woven bag.
    Lead time
    Within 15 days after deposit



    https://www.annilte.net/felt-conveyor-belt-products/







    nomex_belt

    Feature or advantage:

    Eco-friendly, anti-static, good wearability, dustproof, quakeproof, Heat preservation, heatproof, , silencing, fire retardant, insulation.

    Use:

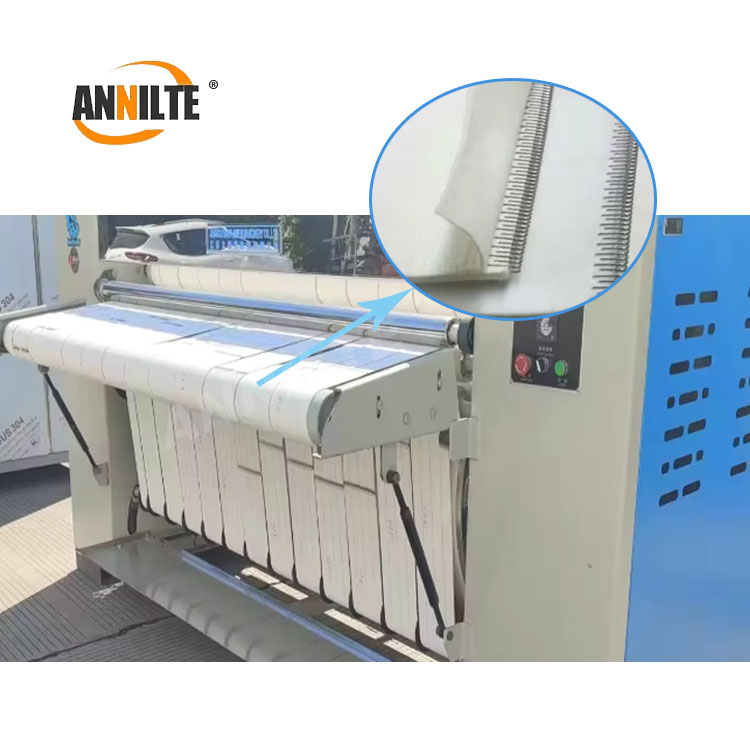

    The texitle industry, sealing, conveying, polishing, high temperature and many other uses. Small deformation, no deviation, compact structure, carpet clean flat surface with high flexibility. Be used for industry producing, normal machine, chemical, electrical, construction, steel and other industrial distric.

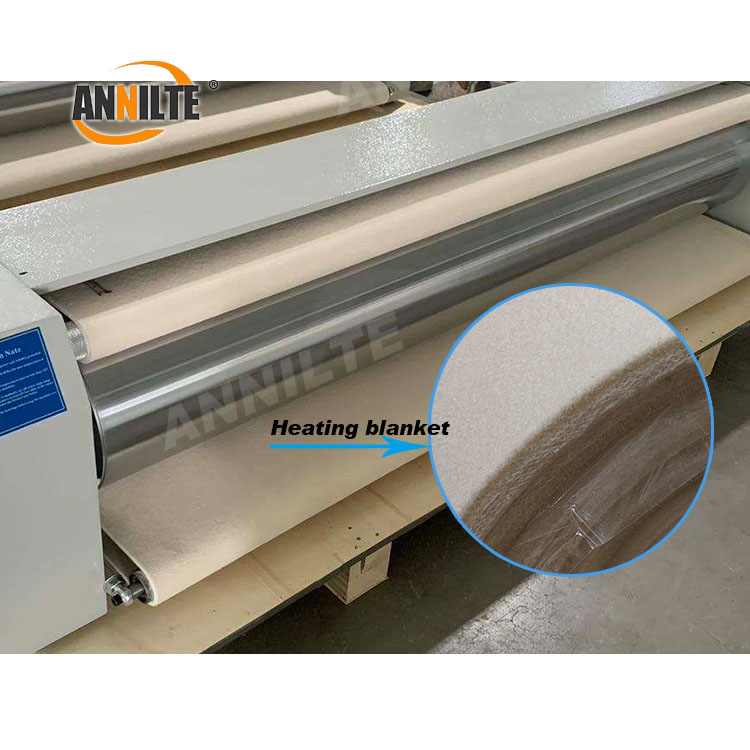

    Installation problems of thermal transfer machine blankets:

    The thermal transfer machine blankets are generally adjusted before they leave the factory, because the thermal transfer machine blankets work at a high temperature of 250°C, and the cold machine and thermal transfer machine blankets experience thermal expansion and contraction, so when the transfer is just started If there is a deviation, please use the following methods to solve it.

    1. In normal transfer, the blanket moves to the left and can be driven in the reverse direction. At this time, the blanket moves to the right and stops on the side of the big drum. Tighten the adjustment screw at the left end of the lower tension shaft “4” and loosen it properly. Just lower the adjusting screw at the right end of the tension shaft “4”.

    2. After using the above method to correct the deviation, if the blanket is still moving to the left at this time, please turn the high-speed joint screw at the right end of the front upper tension shaft “1” and push it forward by 5-8mm.

    3. Move the blanket to the right, and you can drive in the opposite direction. At this time, the blanket will move to the left and stop on the side of the big tube. Tighten the adjusting screw at the right end of the rear lower tension shaft “4”, and loosen the rear lower tension shaft properly. The adjustment screw at the left end of 4″ is enough.

    4. After using the above method to correct the deviation, if the blanket is still going to the right at this time, please turn the adjustment screw at the left end of the front upper tension shaft “4″ and push it forward by 5-8mm.
