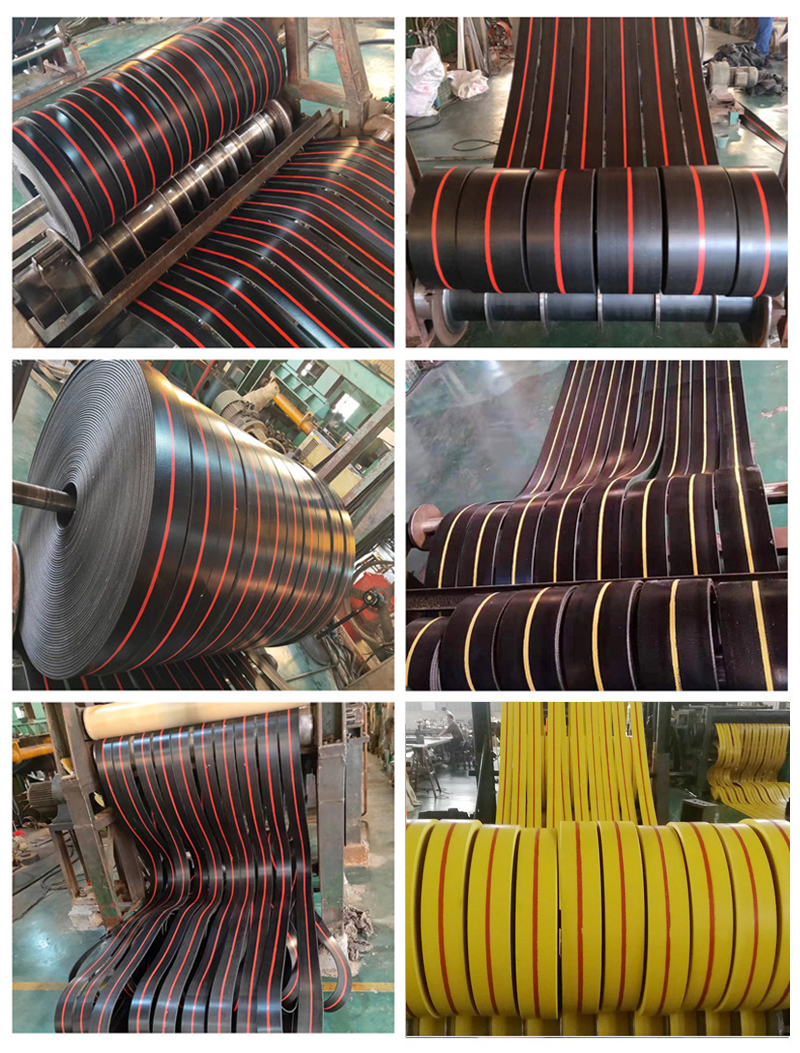

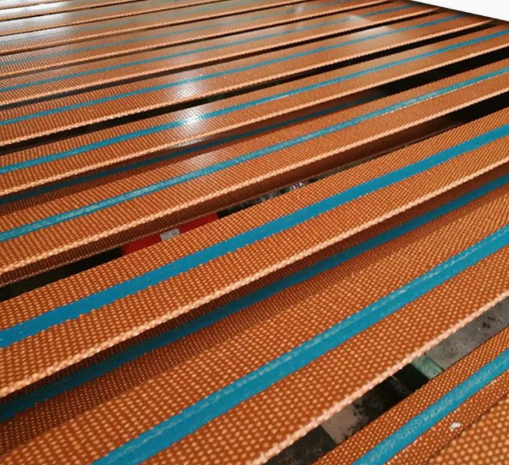

Annilte Cotton Flat power transmission flat drive belt

Flat belt is also known as the drive belt, generally use high-quality cotton canvas as the skeleton layer, rub the surface with proper amount of canvas, rubber, then the multilayer plastic canvas together constitute a flat belt, flat belt has the advantages of high strength, aging resistance, flexibility good, use small elongation and other excellent performance. Mainly used in mining, metallurgy, port I and other departments, but also widely used in mechanical transmission and large power rice processing, agricultural irrigation, timber cutting and other industrial and agricultural power equipment in a power plant, it plays a more and more important role.

Belt Width(mm)	ply	Width tolerance(mm)
20 25 30 35 40 45 50 55 60	3-4	+/- 2
65 70 75 80 90 100 125	3-6	+/- 3
140 160 180 200 225	4-6	+/- 4
288 300 315 350 400 450 550 600	4-10	+/- 5
6mm	50	3.2
7mm	55	4.2
8mm	65	5.1
9mm	75	6.8
10mm	85	7.7
12mm	100	12.2
15mm	120	17.8
18mm	145	25.4
20mm	160	31.3
