Polyester Mesh Belt for Food and Vegetables Drying
Food Grade 100% Polyester Fabric Mesh Conveyor Belt for Drying Fruit Vegetable
Material Characteristics
Polyester (PET): It is characterized by high temperature resistance (usually can withstand -40℃~200℃), corrosion resistance, high tensile strength, not easy to be deformed, and conforms to food grade safety standards.
Fiber structure: It is woven with polyester monofilament or multifilament, with smooth surface and good air permeability, suitable for even drying of food
| Polyester Mesh Conveyor Belt | |||||||
| Weaving Type | Model | Thread Diameter | Density(No.s/cm) | Srength (N/cm) | Air Permeability (m³/m²h) | ||
| (mm) | |||||||
| Warp | Weft | Warp | Weft | ||||
| 2-shed plain weaving fabric | AN_PO_01 | 0.75 | 0.8 | 4.7-5 | 4.8-5 | 940 | >20000 |
| AN_PO_02 | 1 | 1 | 4.7-5.2 | 4.3-5 | 1600 | >15000 | |
| AN_PO_03 | 0.7 | 0.7 | 8 | 7 | >=1600 | 11000 | |
| AN_PO_04 | 0.7 | 1 | 6.6-7 | 4.3-4.6 | 1100 | >15000 | |
| AN_PO_05 | 0.55 | 0.55 | 7.5-8 | 8.5-9 | 850 | 850-6500 | |
| AN_PO_06 | 0.45 | 0.45 | 10 | 8.6 | 1600 | 16000 | |
| AN_PO_07 | 0.5 | 0.5 | 8.5-9 | 10-10.5 | 750 | >10000 | |
| AN_PO_08 | 0.5 | 0.5 | 13.5 | 8.5 | 1800 | 6500 | |
| 3-shed plain weaving fabric | AN_PO_09 | 0.5 | 0.6 | 10 | 9 | 1600 | 14000 |
| AN_PO_10 | 0.9 | 0.9 | 7.8-8 | 5-5.5 | 2100 | 7500-8500 | |
| AN_PO_11 | 0.7 | 0.8 | 8 | 8 | 1600 | 10000 | |
| AN_PO_12 | 0.3 | 0.35 | 22 | 14.5 | 1200 | 13000 | |
| AN_PO_13 | 0.3 | 0.4 | 22 | 14.5 | 1200 | 13500 | |
Our Product Advantages
Odorless and non-toxic: It is made of high-purity polyester (PET) material, which does not release harmful gases at high temperatures and does not affect the flavor of food.
Anti-stretch & Wear-resistant: Adopting high-strength and low-extension polyester monofilament or multi-stranded stranded wire weaving, the tensile strength is better than ordinary mesh belts, and it is not easy to loosen or break in long-term use.
Anti-sticking treatment is optional: For high sugar and fat foods (such as preserves and pastries), PTFE or silicone coated mesh belts are available to minimize sticking and residue.
Convenient Installation: Various types of joints are available (spiral buckle, chain, seamless splicing, etc.), which are suitable for mainstream drying equipment with high replacement efficiency.

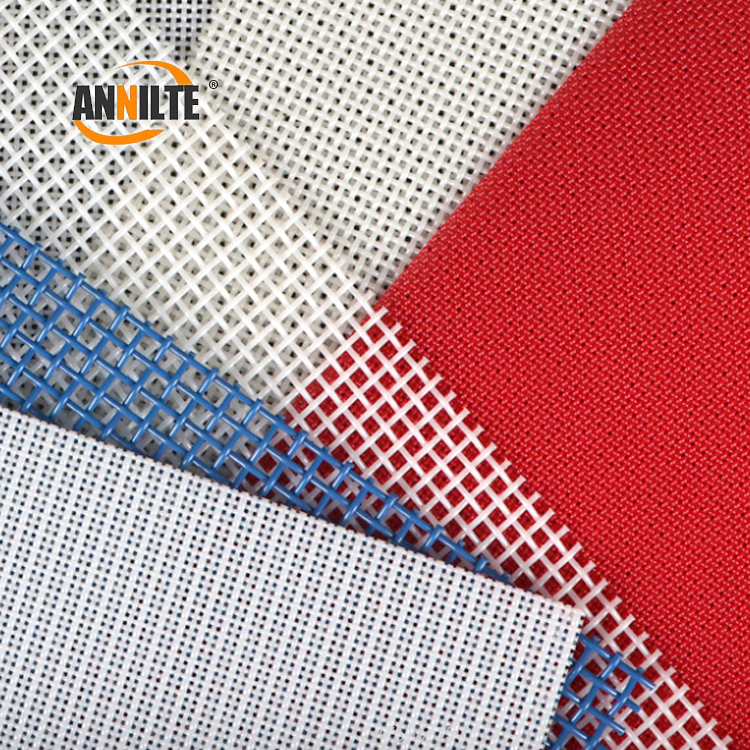

Flexible customization: adjust the mesh size (0.5mm~15mm), width (10mm~5m) and color (transparent, white, blue, etc.) according to the customer's requirements to meet the drying needs of different food forms (granules, flakes, liquid coating).
Why Choose Us
Wrapping process: new wrapping process researched and developed, preventing cracking, more durable;
Added guide bar: smoother running, anti-bias;
High temperature resistant stereotypes: updated process, the working temperature can reach 150-280 degrees;
Applicable Scenarios

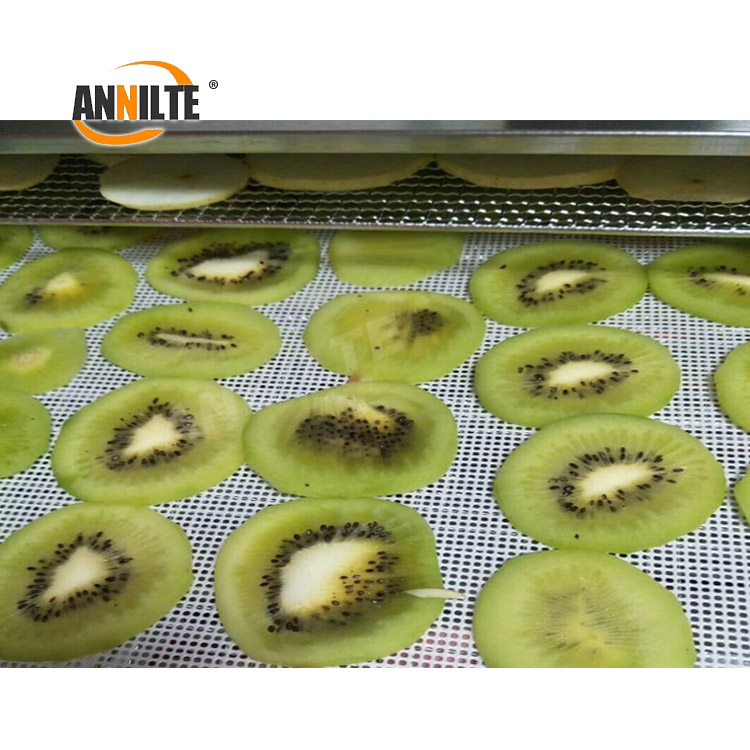

Fruit and vegetable drying: dehydrated vegetables, dried fruits, mushrooms.
Meat drying: bacon, sausage, dried fish.
Pasta baking: cookies, bread, noodles.
Others: tea, nuts, pet food, etc.
Recommended Specifications for Different Food Types
| Food Type | Recommended Mesh Size | Recommended Belt Type |
|---|---|---|
| Vegetables/Fruit Slices | 1mm ~ 3mm | Monofilament woven, high breathability |
| Meat/Jerky | 3mm ~ 8mm | Multifilament braided, heavy-duty |
| Biscuits/Bakery | 2mm ~ 5mm | PTFE-coated, non-stick |
| Tea Leaves/Herbs | 0.5mm ~ 2mm | Fine mesh, anti-leakage |
| Noodles/Vermicelli | 4mm ~ 10mm | Rectangular holes, anti-breakage |
Quality Assurance Stability of Supply
R&D Team
Annilte has a research and development team consisting of 35 technicians. With strong technical research and development capabilities, we have provided conveyor belt customization services for 1780 industry segments, and gained recognition and affirmation from 20,000+ customers. With mature R&D and customization experience, we can meet the customization needs of different scenarios in various industries.
Production Strength
Annilte has 16 fully automated production lines imported from Germany in its integrated workshop, and 2 additional emergency backup production lines. The company ensures that the safety stock of all kinds of raw materials is not less than 400,000 square meters, and once the customer submits an emergency order, we will ship the product within 24 hours to respond to the customer's needs efficiently.
Annilte is a conveyor belt manufacturer with 15 years of experience in China and an enterprise ISO quality certification. We are also an international SGS-certified gold product manufacturer.
We offer a wide range of customizable belt solutions under our own brand, "ANNILTE."
Should you require further information regarding our conveyor belts, please do not hesitate to contact us.
