100% Polyester Fabric Sludge Dewatering Filter Mesh Conveyor Belt for Press
Polyester Filter Belts are specially designed woven mesh filter cloth for the belt press filters, it’s a circuit belt fabric connected by SS clipper seam to be able to work continuously.
The filter belts is a sturdy fabric made out by high viscosity polyester monofilament yarn on heavy-duty weaving looms and being heat set. PFM’s choose superior polyester monofilament yarn, weaving by advanced looms, excellent thermal treatment, all these makes our polyester filter belts in precise aperture, good transverse stability, lengthways flexibility, excellent mechanical strength and stability in shape and dimension.
Specifications for Polyester Mesh Belt
| Product Name | 100% Polyester Fabric Sludge Dewatering Filter Mesh Conveyor Belt for Press |
| Color | White, Bule |
| Technique | Woven Spiral |
| Material | Polyester |
| Application | Drying food, paper making indusry, mine industry etc |
| Size | Max width can reach to 4000mm , belt length can be customized as your machine. |
| Type | Blet with seam& edge, Sheets with edge etc |
Selection Guide(Physical Properties)
| Parameter | Typical Value/Range | Explanation |
|---|---|---|
| Material | PET Monofilament/Multifilament | Monofilament offers better airflow; multifilament provides higher solids retention. |
| Tensile Strength | Longitudinal ≥800~1200 N/cm | High-tension models require ≥1000 N/cm. |
| Elongation | ≤10% (operating condition) | Low elongation reduces belt-tracking issues. |
| Air Permeability | 5~12 m³/m²·h | Municipal sludge: 5~8 m³/m²·h; coarse-particle sludge may require higher values. |
| Pore Size | 30~150 μm | Activated sludge: 30~50 μm; mineral slag: 100~150 μm. |
| Thickness | 1.8~2.5 mm | High-pressure zones (>6 bar) recommend ≥2.2 mm. |
| Temperature Resistance | 90~120℃ (short-term) | Continuous operation temperature should be ≤80℃. |
Our Product Advantages
1. Cost-Effectiveness & Durability
Lower lifecycle cost vs. nylon/PTFE belts, with 8–18 months service life in municipal/industrial sludge.
High tensile strength (800–1200 N/cm) resists stretching, reducing downtime for re-tensioning.
2. Superior Chemical Resistance
pH stability (2–12): Ideal for most municipal wastewater (pH 6–8) and mild industrial effluents.
Anti-microbial: PET resists biological degradation in organic sludge environments.
3. Optimized Filtration Performance
Adjustable porosity: 30–150 μm pore sizes balance solids capture (≥95%) and dewatering speed.
High permeability (5–12 m³/m²·h): Faster water removal vs. multifilament belts.

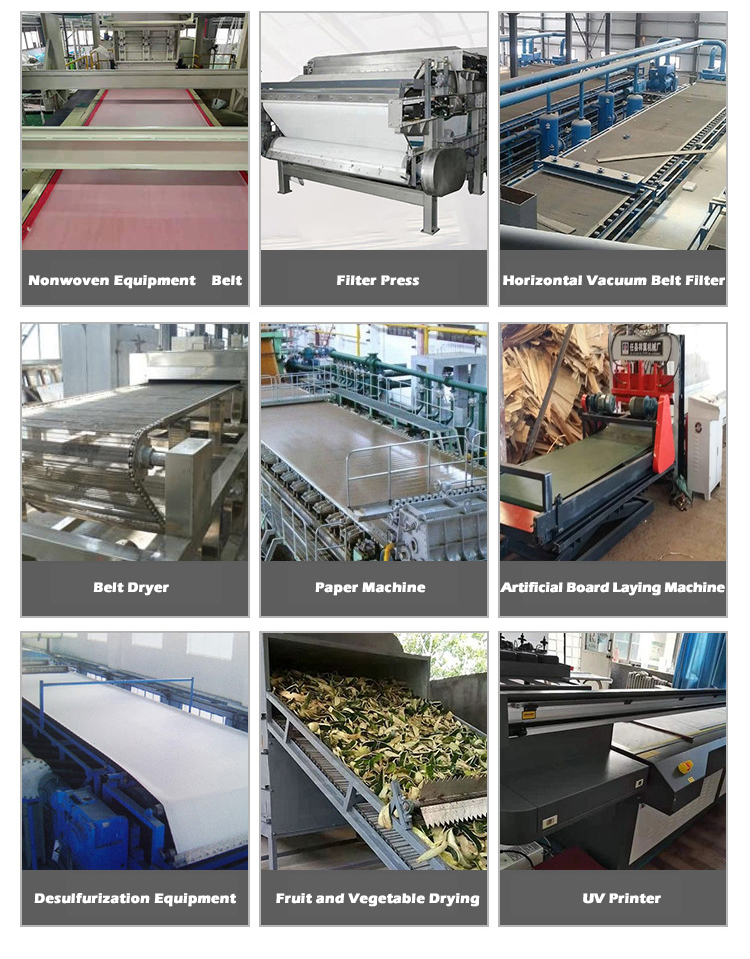

Applicable Scenarios
1) The synthetic woven mesh filter belts are most widely used in dewatering and drying for municipal sludge, industrial slurries, and biologic sludge, and aid the mine tailing dewatering process for its capacity of continuous working and high efficiency.
2) Polyester mesh filter belt cloth is suitable for juice extracting and pressing from fruit and vegetables on the belt press filters, especially for apple, pear, thorn pear, ginger and other berries, nuts. Our woven mesh filter belts are always safe, robust and reliable, the special weave to get accurate pore size and sturdy surface combined which ensure optimum juice yield and dewatering result, the high-quality material and thermal treatment make the press belt fabrics in smooth running properties and good durability.
Quality Assurance Stability of Supply
R&D Team
Annilte has a research and development team consisting of 35 technicians. With strong technical research and development capabilities, we have provided conveyor belt customization services for 1780 industry segments, and gained recognition and affirmation from 20,000+ customers. With mature R&D and customization experience, we can meet the customization needs of different scenarios in various industries.
Production Strength
Annilte has 16 fully automated production lines imported from Germany in its integrated workshop, and 2 additional emergency backup production lines. The company ensures that the safety stock of all kinds of raw materials is not less than 400,000 square meters, and once the customer submits an emergency order, we will ship the product within 24 hours to respond to the customer's needs efficiently.
Annilte is a conveyor belt manufacturer with 15 years of experience in China and an enterprise ISO quality certification. We are also an international SGS-certified gold product manufacturer.
We offer a wide range of customizable belt solutions under our own brand, "ANNILTE."
Should you require further information regarding our conveyor belts, please do not hesitate to contact us.
