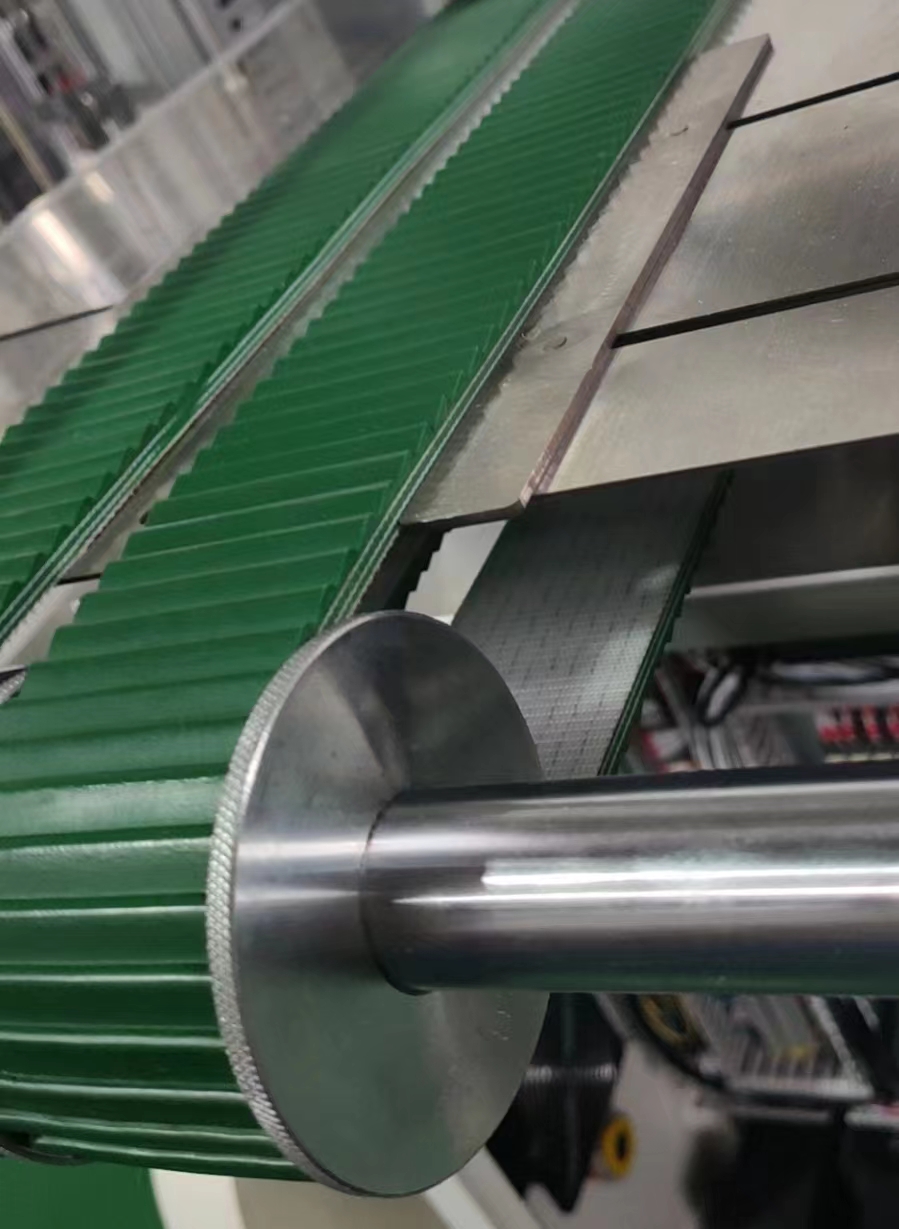

Horizontal Stripe Anti-skid Pvc Conveyor Belt for Fruit Packaging Production Line
Structure and material
| Color： | Green / White | Surface： | washboard |
| Tal thickness (mm) : | 5 | Construction： | Two cloths and two adhesives. |
| Surface coating hardness (Shore A) : | 75 | Minimum small roller diameter (mm) | 90 |
| Tensile strength (N/mm) | ≥160 | Lateral stability： | yes |
| Joint treatment | Seamless thermal splicing / buckling connection | Tensile force at 1% elongation (N/mm) | 12 |
| Number of layers | 4 | Low noise： | no |
| Total weight (Kg/M2) : | 4 | Working temperature (℃) : | -10—+80 |
| Structure | |||
| Bottom belt thickness: | 2mm | Tooth pitch: | 7mm |
| Pattern height: | 2.8mm | Total thickness: | 4.8mm |
Core Benefits
✔ Cost effective - 30-50% cost reduction compared to PU and rubber
✔ Excellent anti-slip - static coefficient of friction up to 0.6-0.8, inclined conveying angle up to 30°
✔ Easy to clean and maintain - smooth, non-adhesive surfaces, supports high-pressure water jetting
✔ Variety of choices - available in a wide range of thicknesses, colors, and pattern specifications
Our Service Advantages
★ Support customization by drawing and sample
★ Provide free sample test
★ 72 hours fast delivery
★ Professional technical team support
Product Classification
Product Pattern
PVC conveyor belts can be divided into lawn pattern, herringbone pattern, diamond pattern, cross pattern, mesh pattern, inverted triangle pattern, horseshoe pattern, sawtooth pattern, small dot pattern, diamond pattern, snakeskin pattern, cloth pattern, large round table pattern, wave pattern, rubbing board pattern, one-word pattern, fine straight pattern, golf pattern, large square pattern, matte pattern, coarse texture pattern, plaid pattern, etc.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Flat belt | Lawn pattern | Circular Nail | Sander's Belt | Diamond pattern | Diamond | I-beam pattern | Rubbing board | Dot Pattern | Felt pattern |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Diamond pattern | Diamond pattern | Sawtooth pattern | Eagle pattern | Fishbone pattern | Wavy Grass | New I-beam | Vertical | Cloth pattern | Rubbing board |
Customized Scope
Annilte offers a wide range of customization options, including band width, band thickness, surface pattern, color, different processes (add skirt, add baffle, add guide strip, add red rubber), etc., which can meet the needs of different customers.
For example, the food industry may need oil and stain resistant properties, while the electronics industry needs anti-static properties. No matter which industry you are in, ENERGY can customize for you to meet the needs of various special working conditions.
Add skirt baffles
Guide bar processing
White Conveyor Belt
Edge Banding
Blue Conveyor Belt
Sponging
Seamless Ring
Wave processing
Turning machine belt
Profiled baffles
Applicable Scenarios
1. Packaging logistics field
Express sorting center parcel conveying
E-commerce warehouse carton conveying line
Airport baggage conveying system
2. Food Processing Industry
Bottled Beverage Production Line
Frozen Food Packaging Line
Candy Chocolate Conveying
3. Light Industrial Manufacturing
Electronics Assembly Line
Small Parts Conveyor
Printed Products Conveyor Belt
Quality Assurance Stability of Supply
R&D Team
Annilte has a research and development team consisting of 35 technicians. With strong technical research and development capabilities, we have provided conveyor belt customization services for 1780 industry segments, and gained recognition and affirmation from 20,000+ customers. With mature R&D and customization experience, we can meet the customization needs of different scenarios in various industries.
Production Strength
Annilte has 16 fully automated production lines imported from Germany in its integrated workshop, and 2 additional emergency backup production lines. The company ensures that the safety stock of all kinds of raw materials is not less than 400,000 square meters, and once the customer submits an emergency order, we will ship the product within 24 hours to respond to the customer's needs efficiently.
Annilte is a conveyor belt manufacturer with 15 years of experience in China and an enterprise ISO quality certification. We are also an international SGS-certified gold product manufacturer.
We offer a wide range of customizable belt solutions under our own brand, "ANNILTE."
Should you require further information regarding our conveyor belts, please do not hesitate to contact us.
