Precision Conveying in Tobacco Processing

In the tobacco industry, conveyor belts are not merely material handling components—they are critical to product integrity, quality control, and regulatory compliance. From green leaf processing to primary processing and finished cigarette manufacturing, the demands on conveying systems are exceptionally high: dust resistance, anti-static properties, chemical stability, and strict adherence to food-grade and pyrolysis safety standards.

For plant engineers, procurement managers, and equipment integrators evaluating conveying solutions, the question is essential: What makes a PE conveyor belt the preferred choice for tobacco industry applications, and what should buyers look for?

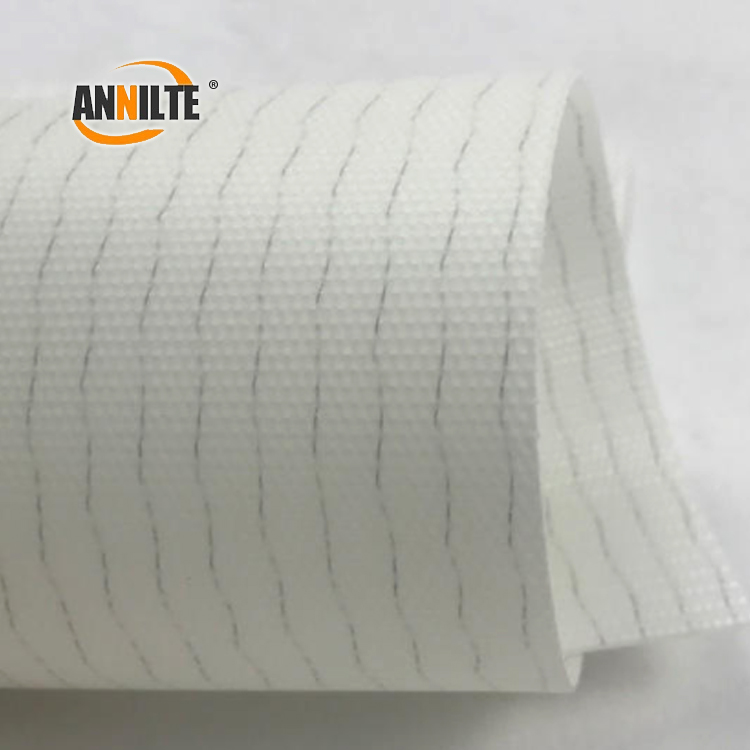

A PE (polyethylene) conveyor belt is a light-duty belting solution constructed with a polyester fabric skeleton and a polyethylene coating layer. It offers excellent wear resistance, chemical stability, anti-static properties, and compliance with FDA food safety standards—making it ideally suited for the tobacco industry's demanding requirements .

---

Why PE for Tobacco? Understanding the Material Advantage

Material Composition

PE (polyethylene) is a thermoplastic polymer known for its simple molecular structure and wide applicability. In conveyor belt construction, PE is typically combined with a polyester fabric reinforcement layer to provide both flexibility and tensile strength .

Key Material Properties

The Pyrolysis Requirement

A distinguishing feature of tobacco-grade conveyor belts is their ability to pass the pyrolysis test—a combustion analysis that ensures no release of nitrogenous or halogenated compounds. Unlike plasticized PVC, polyolefins like PE combust to form almost exclusively carbon dioxide and water vapor, with no hazardous by-products . This compliance is a mandatory requirement for tobacco industry equipment .

Types of PE Conveyor Belts for Tobacco Applications

1. Smooth Surface PE Belts

The standard configuration for tobacco conveying. The smooth, non-adhesive surface ensures easy release of tobacco materials while minimizing product adhesion. Typical thickness: 0.9mm–2.5mm .

Applications: Green leaf handling, primary processing lines, general conveying.

2. Oval Stud PE Conveyor Belts

Featuring an oval-shaped stud pattern on the surface, this design increases friction and carrying capacity, preventing slippage during conveying. Made from HDPE material, these belts are particularly effective for handling tobacco dust and varying product sizes .

Applications: Sorting, drying, cutting, and packaging sections.

3. Cross Profile PE Belts

A transverse profile design for applications requiring additional grip and product control. Typical thickness: 5.0mm .

Applications: Inclined conveying, product elevation.

4. Bottom Pattern PE Belts

Patterned bottom surface for improved traction on drive rollers. Typical thickness: 5.0mm .

---

Technical Specifications by Application

Key Parameters for Selection

1. Thickness Selection

• 0.9mm – 1.2mm: Light-duty applications, flat conveying
• 2.0mm – 3.0mm: Medium-duty, moderate load applications
• 4.0mm – 5.0mm: Heavy-duty, profiled applications, high stability requirements

2. Width Availability

Standard widths typically range from 300mm to 1000mm, with custom widths available up to 3000mm depending on the manufacturer .

3. Surface Profiles

4. Anti-Static Requirements

Most tobacco-grade PE belts incorporate conductive yarn in the bottom layer to dissipate static charge. This is critical for preventing dust accumulation and ensuring operator safety in dust-prone environments .

Mite-Proof Technology

A specialized manufacturing concern for tobacco processing is mite contamination, which can compromise product quality and health standards. Advanced manufacturing methods incorporate anti-mite agents (such as isothiazolinone compounds) into the PE material or fabric treatment. These agents inhibit mite reproduction while maintaining full compliance with FDA and EU REACH regulations . This is a key consideration for buyers specifying tobacco-grade belting.
