Nomex Blanket for EST-1821 Lite: Fix Downtime & Edge Burn in Heat Transfer Printing

If your heat transfer line is running the EST-1821 Lite, you already know the machine is capable of excellent throughput. But the blanket belt is often the weakest link in the chain. When the Nomex blanket starts to drift, crack at the edges, or lose dimensional stability, the entire line stops. At Annilte, we manufacture replacement Nomex Blanket for EST-1821 Lite belts that are engineered to outlast standard felts in continuous high-temperature operation.

Why EST-1821 Lite Operators Face Blanket Failures

The EST-1821 Lite is widely used in sublimation and dye-sub printing. The belt on this machine faces a brutal combination of factors: continuous heat (often 200°C–230°C), lateral tension from the tracking system, and chemical exposure from inks and transfer paper.

From our work with printing factories, we see three recurring pain points:

1. Edge Burning and Fraying
When a blanket is slightly misaligned, the edge rubs against the frame or guide. Standard felts degrade quickly at the edge, leading to fiber loss and eventual breakage. Annilte’s Nomex blanket uses a denser needle-punched structure that resists edge abrasion significantly longer than commodity felts .

2. Loss of Tracking Stability
As the blanket absorbs heat and moisture, inferior felts shrink or stretch unevenly. The EST-1821 Lite’s tracking cone then struggles to keep the belt centered. Frequent manual adjustments become necessary, wasting operator time and risking sudden belt run-off. Our blanket is heat-set during production, with a thermal shrinkage rate of ≤1% .

3. Short Service Life
Many generic Nomex blankets on the market use recycled fiber or inconsistent web formation. They compact and harden within months, losing the soft, resilient surface needed for smooth transfer. Annilte’s blanket is made from 100% virgin Nomex fiber, maintaining flexibility and pressure distribution across its entire service life .

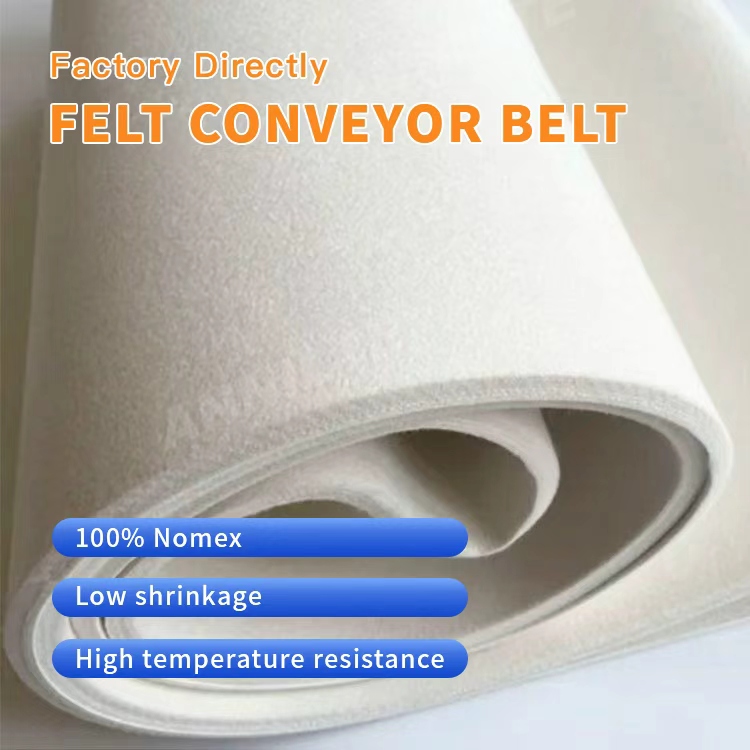

Annilte’s Solution: Nomex Blanket for EST-1821 Lite

Annilte has been manufacturing high-temperature conveyor belts for over 15 years, serving 1,780 industry segments with customization capabilities . Our blanket for the EST-1821 Lite is not a generic cut-to-size felt—it is built to the specific tension and thickness requirements of this machine platform.

Key Specifications

• Material: 100% Nomex fiber (aramid)
• Thickness: 6mm–12mm (customizable to match your EST-1821 Lite’s nip pressure requirements)
• Continuous Operating Temperature: 210°C–250°C
• Thermal Shrinkage: ≤1%
• Width & Length: Fully customizable to your machine’s exact dimensions

What Makes Annilte Different
Our integrated workshop includes 16 fully automated production lines imported from Germany, plus two emergency backup lines. We maintain a raw material safety stock of over 400,000 square meters, which means urgent replacement orders can ship within 24 hours . For printing factories, that speed can mean the difference between a minor hiccup and a week of lost production.

Application Case: Fixing Belt Drift on a High-Speed Sublimation Line

A commercial sublimation printer in Southeast Asia was running three EST-1821 Lite machines. Their previous blanket supplier’s product required tracking adjustments every shift, and edge burning forced replacement every 4–5 months.

The Problem: The blanket was shrinking unevenly across its width. The center remained stable, but the edges pulled inward, causing the belt to ride the tracking cone incorrectly. Operators compensated by increasing tension, which accelerated edge wear.

The Annilte Fix: We supplied a 9mm thick Nomex blanket with a pre-stabilized weave structure and slightly increased density at the edges. The heat-setting process was adjusted to match the customer’s actual operating temperature profile.

Result: Tracking adjustments dropped to once every 3–4 days. Belt life extended to 9 months under the same operating conditions. The customer now standardizes on Annilte blankets across all three machines.

Troubleshooting Guide: When Your Blanket Is Failing

Even a high-quality blanket needs proper care. Here are the warning signs we help our customers monitor:

Symptom: Horizontal Cracks Across the Belt
This usually indicates thermal degradation of the fiber core. It often happens when the blanket is run above its rated temperature or when steam pressure is inconsistent. Check your actual surface temperature with a contact thermometer—don’t rely solely on the machine’s display. If cracks appear within 6 months, your blanket may be under-specified for your operating conditions.

Symptom: Belt Wanders to One Side
First, check the tracking cone and guide roller bearings for drag or seizure. If the mechanical components are free, the blanket has likely lost dimensional stability. Measure the belt width at room temperature and again after 30 minutes of operation. A difference of more than 0.5% indicates the blanket is not properly heat-set.

Symptom: Surface Glazing or Hardening
A glazed blanket cannot distribute pressure evenly, leading to ghosting and uneven transfer. This is often caused by chemical buildup from inks or cleaning agents. Use only approved cleaning methods, and avoid sharp scrapers that damage the felt surface.

Compatible Industries and Machine Brands

Beyond the EST-1821 Lite, Annilte’s Nomex blankets are used across a range of heat transfer and high-temperature conveyor applications:

• Textile sublimation: Continuous dye-sub lines, calenders, and roll-to-roll presses
• Laundry and garment finishing: Flatwork ironers requiring high-temperature resistance
• Non-woven and composite processing: Thermal bonding and lamination lines
• Printing and packaging: Heat transfer label presses and hot-stamping equipment

Our blankets are trusted by operators running machines from major brands in the textile printing sector. If you need a cross-reference for a specific machine model, our engineering team can provide thickness, length, and joint specifications.

Get the Right Blanket for Your EST-1821 Lite

Don’t let a failing blanket dictate your production schedule. Annilte manufactures Nomex blankets that are dimensionally stable, edge-durable, and built to the exact specifications of your machine. With 35 R&D technicians and a 24-hour emergency shipping capability for stock materials, we support printing operations that cannot afford extended downtime .

Contact Annilte today with your machine dimensions and operating temperature. We will recommend the correct thickness and configuration for your EST-1821 Lite, and provide a quotation within one business day.
