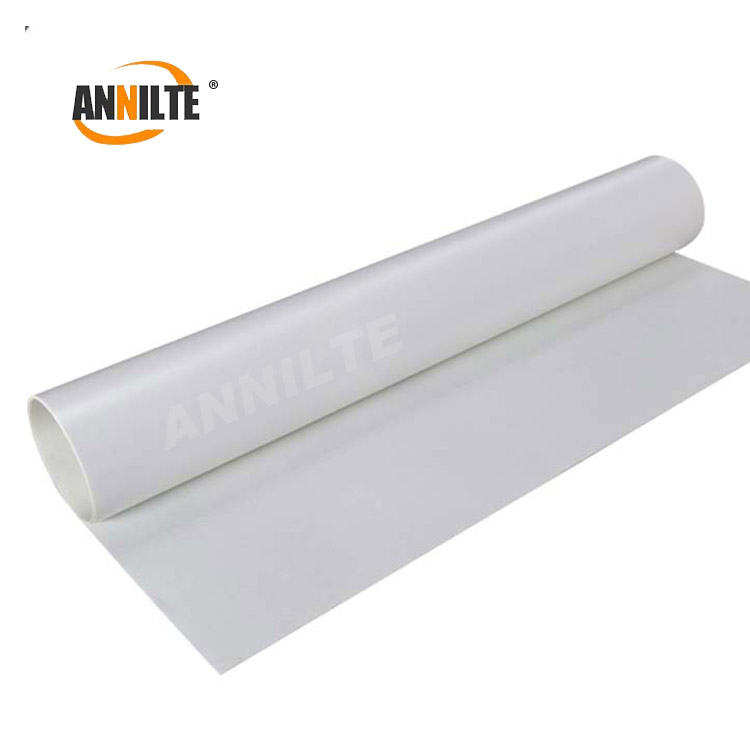

When your production environment demands more than standard belts can deliver,Annilte’s newly developed NWEE conveyor belt sets a new benchmark. Combining advanced TPEE coating with a dimensionally stable fabric design, NWEE delivers reliable performance where temperatures drop to -40°C and chemicals challenge ordinary materials.

---

Key Features That Set NWEE Apart

1. Exceptional Low-Temperature Performance (-40°C)

NWEE operates seamlessly in freezing conditions down to -40°C, with an optimal working range from -25°C to +140°C and intermittent tolerance up to +160°C (open).
For every 10°C drop below 23°C, we recommend increasing pulley diameter by 20% to maximize belt life – a design flexibility that ensures durability even in extreme cold storage or outdoor winter applications.

2. Superior Chemical Resistance

The transparent TPEE coating (0.3 mm, 90 Shore A, matte finish) resists a wide range of industrial chemicals, oils, and greases, making NWEE suitable for processing lines that involve lubricants, cleaning agents, or acidic/basic environments.

3. Non-Delamination Under Misalignment

One of NWEE’s standout engineering breakthroughs: edge stress does not cause layer separation. The belt’s plain-weave structure with transverse stabilization and a 2-layer fabric design prevents running-off-edge delamination – a common failure in traditional belts.

4. High Load & Low Stretch Characteristics

• Force at 1% elongation: 10 N/mm
• Recommended installation elongation: 0.3% – 1.0%
• Actual elongation can be fine-tuned based on load, idler support (slider bed or roller), and ambient conditions.

5. FDA-Compliant Food Contact

The TPEE coating meets FDA requirements for direct food contact, while the transparent, non-marking surface supports visual inspection and hygienic operation. Ideal for food processing, packaging, and pharmaceutical lines.

---

Technical Specifications at a Glance

---

Built for Real-World Industrial Challenges

• Belt support: Slider bed or rollers – both suitable.
• High heat resistance: Up to 160°C open (intermittent).
• Running stability: No layer separation even under continuous off-tracking conditions.
• Easy splicing: Finger joint or mechanical fastening for quick installation and repair.

*Note: All data are typical values measured at 23°C / 50% relative humidity (ISO 554). Low-temperature or high-temperature continuous operation may reduce service life. For extreme cases, consult our engineering team for customization.*

---

Applications That Demand NWEE

• Cold storage / frozen food handling (-40°C environments)
• Chemical & fertilizer plants (oil/grease/acid exposure)
• Food processing lines (FDA-compliant, easy-clean surface)
• Logistics & sorting systems requiring dimensional stability
• High-temperature drying or curing lines (up to 160°C open)
