The Critical Interface Between Machine and Material

In automated fabric and flexible material cutting, the Gerber cutting machine represents the gold standard for precision and speed. However, many production managers overlook the most critical interface between the machine and the material: the PU perforated conveyor belt. A low-quality belt doesn't just fail—it sabotages your entire production. Poorly drilled holes compromise vacuum suction, causing material shift. A belt that stretches will throw off cutting coordinates, resulting in costly waste.

For advanced applications like carbon fiber prepreg cutting in aerospace and automotive manufacturing, the stakes are even higher. Material shifting during cutting ruins part accuracy and wastes expensive material.

The Annilte Advantage: 17 Years of Gerber-Specific Expertise

Annilte has applied 17 years of technical expertise to create high-precision PU perforated belts specifically optimized for Gerber systems. Our belts are not generic adaptations—they are the result of targeted R&D for Gerber's unique vacuum and cutting dynamics. As an ISO and SGS-certified manufacturer serving 18 Fortune 500 companies, we bring industrial-grade reliability to your cutting room.

Technical Breakthroughs: Solving the Industry's Persistent Challenges

1. CNC Precision Perforation for Maximum Vacuum Efficiency

The core function of a Gerber belt is to provide a stable vacuum environment to hold fabric in place. If holes are inconsistently sized or poorly aligned, suction is compromised.

Annilte Technical Solution: We utilize fully automated CNC Precision Drilling Lines for all our perforated belts. Our CNC system ensures every hole is positioned with a tolerance of ±0.1mm. This micron-level precision guarantees uniform air permeability across the entire surface, enabling your vacuum system to operate at peak efficiency—even for delicate or thick materials during high-speed cutting passes.

2. HST Zero-Stretch Technology: Maintaining Cutting Accuracy

In CNC cutting, the belt's pitch (movement accuracy) is everything. If the belt stretches due to tension or heat, cut shapes will be distorted—elongated or compressed.

Annilte Technical Solution: Our PU belts are built with a high-tenacity polyester fabric core and processed through our proprietary HST (Heat Setting Technology) Secondary Setting. This process creates a structural stability of ≥10N/mm² at 1% strain. The belt maintains exact dimensions throughout its service life, ensuring your Gerber software's digital patterns translate into physical cuts with absolute accuracy, day after day.

3. 100% Virgin PU: Durability Against High-Frequency Vibration

Gerber machines operate with high-frequency vibrating knives, creating constant mechanical stress and abrasion on the belt surface. Belts made from recycled materials or low-grade PU quickly develop cracks, surface shedding, or edge fraying.

Annilte Technical Solution: We use only 100% Virgin Polyurethane (PU) from top-tier global suppliers. We stabilize the material's elastic modulus within the 800-1000 MPa "High-Toughness Window". This provides extreme flex fatigue resistance and high abrasion resistance—our belts withstand the "micro-impacts" of the vibrating knife for up to 30-50% longer than standard belts, significantly reducing replacement frequency and Total Cost of Ownership.

4. Seamless Splicing: Eliminating the "Knife Jump"

Any irregularity at the belt joint will disrupt the cutting head's path. A protruding or weak seam is the most common cause of belt-related cutting errors.

Annilte Technical Solution: Leveraging our premium material supply network, we ensure absolute Melt Index (MI) stability for our PU materials. Our high-frequency welding process creates a joint flush with the belt surface with a fatigue variation of less than 5% after 10,000 cycles. The knife glides over the seam without any disruption to cutting depth, ensuring consistent quality across the entire cutting table.

5. HST Zero-Tracking: Protecting Your Equipment

Tracking deviation (running off-center) is a major risk for high-speed cutters. It damages belt edges and creates "belt dust" that can contaminate fabric.

Annilte Technical Solution: By eliminating internal stresses through HST technology, we ensure our belts have perfectly uniform density and lie absolutely flat. The belt runs straight and true without constant manual adjustment. This "Zero-Tracking" reliability protects your machine's rollers and ensures a clean, dust-free cutting environment—essential for high-end fashion and automotive production.

Product Highlights

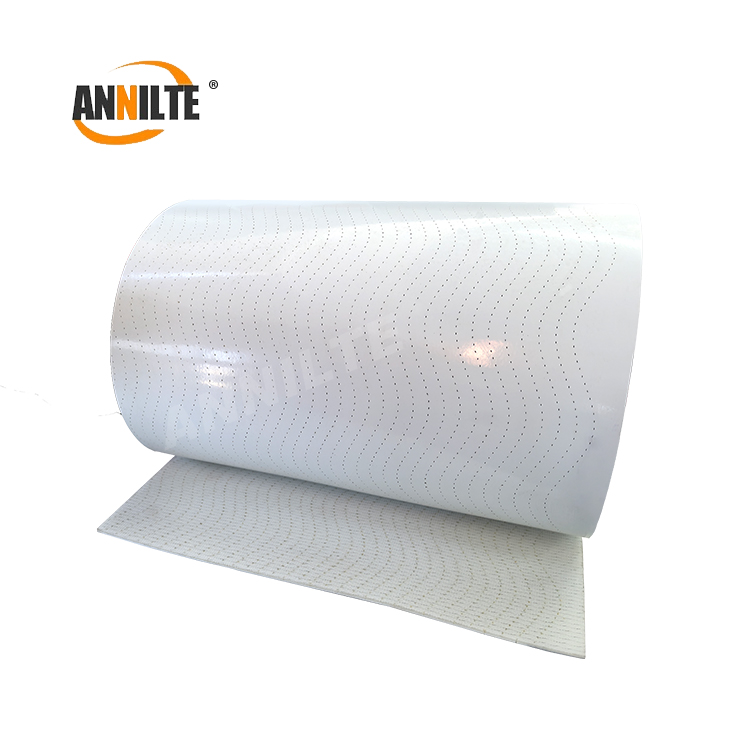

Wave Uniform Perforated PU Belt (General-Purpose Model)

• Material: Premium imported PU compound with multi-layer polyester tensile core
• Key Feature: Proprietary wave uniform cloth perforation pattern; precise hole spacing creates optimal vacuum distribution
• Benefits: Self-healing surface resists deep knife marks; soft, quiet operation buffers blade impact; anti-static additives prevent dust attraction
• Applications: Woven fabrics, leather, carbon fiber prepreg, tent fabrics, multi-ply thick materials

White Glossy PU Vacuum Belt

• Material: High-grade polyurethane with glossy surface finish
• Key Feature: Enhanced reflectivity for optimal optical sensor interaction; non-porous surface prevents lint buildup
• Benefits: Superior vacuum transmission; material protection against snagging and static; cleaner operation
• Applications: Lectra and Gerber cutting systems requiring precise edge detection and positioning

Compatibility

Our belts are designed as direct-fit replacements for all Gerber automatic cutters, including:

• Gerber Z1, Z7, XLC7000, GT5250, S3200, Paragon HX
• Compatible with corresponding Gerber spreading machines
• No machine modification required—install and run stable

Applications Across Industries

• Apparel & Fashion: Woven and knitted fabrics for garments, ensuring pattern matching and clean edges
• Automotive Interiors: Seat covers, headliners, carpeting materials
• Aerospace & Composites: Carbon fiber prepreg, fiberglass, wind turbine materials
• Outdoor Equipment: PTFE membranes, waterproof tent fabrics, neoprene
