If you operate a digital cutting room with Zund, Kongsberg, Eastman, or Bullmer CNC cutting systems, you already know that the oscillating knife felt pad is far more than a simple consumable — it is the foundation of cutting accuracy, material hold-down, and machine longevity . Yet many production managers in Europe and North America continue to struggle with premature belt stretching, static discharge, and frequent replacements that cripple productivity.
This guide addresses the most common pain points in Zund felt belt replacement and demonstrates why Annilte’s precision-engineered felt conveyor belts outperform OEM standards — delivering up to 40% longer service life and significantly improved cut accuracy .
Why Your Zund Cutter Needs a Premium Felt Belt Replacement
Zund flatbed cutters (G3, S3, D3 series) operate under high dynamic loads — oscillating tools, high vacuum suction, and repetitive blade penetration create extreme demands on the conveyor felt belt . A generic or worn-out belt leads to:
- Material shifting during high-speed oscillation cutting
- Uneven vacuum distribution causing material lift and miscuts
- Static buildup disrupting sensors and damaging electronics
- Premature edge fraying and tracking issues
- Increased blade wear from uneven belt surfaces
The Annilte Difference: Engineered for High-Frequency Oscillating Knife Systems
Annilte’s AT-FELT-Z series is specifically developed for Zund and compatible CNC cutting systems, focusing on three core requirements:
| Feature | Generic Felt Belt | Annilte AT-FELT-Z |
|---|---|---|
| Density (g/m²) | 600–800 | 900–1100 |
| Compression loss (200h use) | 12–18% | < 6% |
| Edge fraying | Common after 3–6 months | Minimal after 12+ months |
| Flatness tolerance | ±1.0mm/m | ≤0.3mm/m |
Higher fiber density reduces permanent compression under vacuum, while anti-fraying edge treatment (heat-sealed or stitched reinforced edges) maintains straight tracking over months of continuous use .
Compatibility with Industry-Leading CNC Machine Brands
Annilte felt belts are precision-manufactured to fit — not just “work with” — the following OEM systems:
| Brand | Common Models |
|---|---|
| Zünd | G3, S3, D3 series |
| Kongsberg | C, X, V series |
| Eastman | E55, E65, CutterSharp |
| Bullmer | ProCut, Premiumcut |
| Kuris | CB series, TexCut |
| Summa | F series flatbed cutters |
| Esko | Packaging and display cutting tables |
| Lectra | Vector, Focus series |
Annilte is an independent aftermarket brand. All machine names are trademarks of their respective owners.
Real-World Application: German Automotive Supplier Case Study
A German automotive interior supplier was replacing imported felt belts every 4 months due to edge fraying and tracking issues. After switching to Annilte’s heat-sealed edge felt belt with integrated polyamide monofilament:
- Belt life extended to 14 months (250%+ improvement)
- Cutting accuracy improved from ±0.8mm to ±0.2mm
- Static-related machine alarms dropped to zero
- Annual consumable cost reduced by over 60%
How to Order the Right Felt Belt for Your CNC Cutter
You don’t need a complex drawing. Simply provide:
- Machine brand and model (e.g., Zund G3 L-2500)
- Belt total length and width (or send us the old belt)
- Thickness required (standard: 4mm, 5mm, 6mm, 8mm)
- Surface preference: needled felt only, or with anti-friction coating
Annilte cuts, splices, and ships within 5–7 business days to any EU or US address, with 24-hour emergency shipping available for urgent orders .
Top 5 Pain Points — Solved
| Pain Point | Annilte Solution |
|---|---|
| Inconsistent cutting accuracy | High-density needled felt with low elongation polyester reinforcement maintains ±0.5mm positioning accuracy |
| Static electricity interference | Anti-static treatment (surface resistance <10⁶Ω) prevents sparking and controller errors |
| Short belt life | Abrasion-resistant felt surface lasts 12–18 months under heavy daily operation |
| Difficult installation | Pre-spliced endless belts with match-marked alignment guides for drop-in replacement |
| Poor vacuum hold-down | Controlled permeability design ensures even vacuum distribution across the entire cutting area |

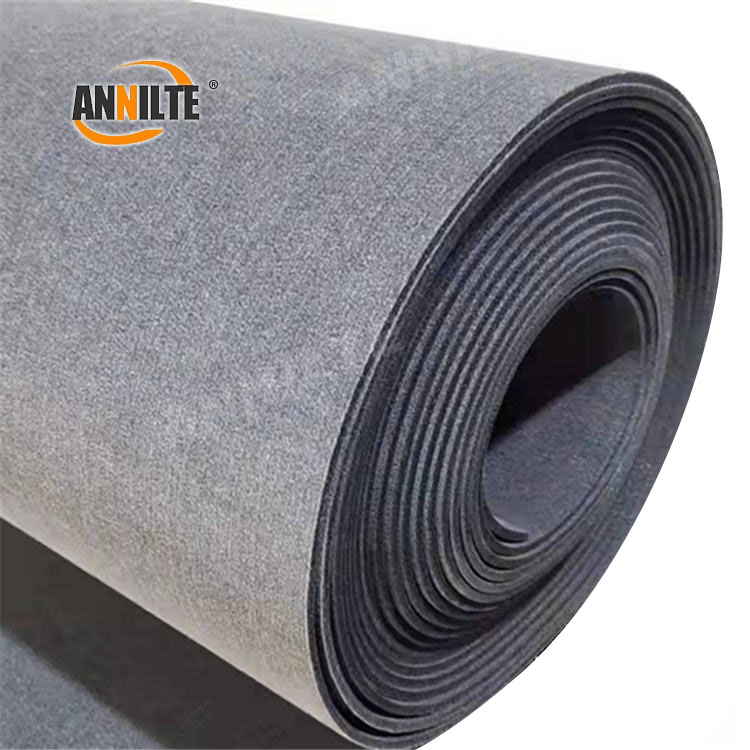

Technical Specifications
| Parameter | Value |
|---|---|
| Material | Polyester + high-temp needled felt |
| Thickness | 3mm, 4mm, 5mm, 6mm, 8mm, 10mm (custom) |
| Width | Up to 3200mm seamless |
| Surface Resistivity | ≤10⁶ Ω (anti-static grade) |
| Max Tensile Strength | ≥800 N/cm |
| Operating Temperature | -20°C to 110°C |
| Vacuum Permeability | 80–120 cfm/ft² |
Why European and American Customers Choose Annilte
- 17 years of industry experience with ISO 9001 and RoHS certification
- 35 R&D technicians providing mature customization for 1780 industry segments
- 16 fully automated German production lines with 400,000+ m² raw material safety stock
- SGS Gold Supplier status with “Green Factory” certification
- Cost-effective: 30–40% less than OEM belts without compromising performance
R&D Team
Annilte has a research and development team consisting of 35 technicians. With strong technical research and development capabilities, we have provided conveyor belt customization services for 1780 industry segments, and gained recognition and affirmation from 20,000+ customers. With mature R&D and customization experience, we can meet the customization needs of different scenarios in various industries.
Production Strength
Annilte has 16 fully automated production lines imported from Germany in its integrated workshop, and 2 additional emergency backup production lines. The company ensures that the safety stock of all kinds of raw materials is not less than 400,000 square meters, and once the customer submits an emergency order, we will ship the product within 24 hours to respond to the customer's needs efficiently.
As a leading Chinese conveyor belt manufacturer with 17 years of industry experience, Annilte is proud to hold both ISO quality management certification and the RoHS environmental directive. Our manufacturing facilities meet “Green Factory” standards, and we are also an internationally recognized SGS Gold Supplier.
We offer a comprehensive range of customizable belt solutions under our own brand "ANNILTE", designed to meet diverse industrial needs.
Should you require further information about our products or capabilities, please do not hesitate to contact us.
