A polyester mesh conveyor belt with skirt, baffle, and guide bar is an integrated, modular conveyor component engineered for high-inclination material handling, spill containment, and precise tracking. Commonly used in food drying, sludge dewatering, powder lifting, and fruit & vegetable washing lines, this belt combines a durable PET polyester mesh base with three functional add-ons: corrugated sidewalls (skirts) to prevent lateral spillage, transverse baffles (cleats) to enable steep-angle climbing, and bottom guide bars to maintain straight tracking. This design eliminates common operational issues such as material rollback, edge leakage, mistracking, and premature wear, ensuring stable, high-efficiency performance for 24/7 automated production lines.

Key Technical Parameters & Structure

Our Annilte brand polyester mesh conveyor belts with skirts, baffles, and guide bars are manufactured using a high-frequency hot-melt vulcanization process that fuses all components seamlessly with the base belt—no rivets, no adhesives, no weak points.

How Does It Work? Integrated Design for Superior Performance

Working Principle

This belt operates by combining containment, gripping, and guidance in one seamless structure. The corrugated skirts create a physical barrier on both sides, preventing fine powders, granules, or liquids from leaking off the edges. The transverse baffles act as small buckets that scoop and hold material during steep inclines, overcoming gravity-induced rollback. Simultaneously, the bottom guide bars run within the conveyor frame’s channels, forcing the belt to stay centered and eliminating lateral drift even on long, multi-level systems.

Main Components

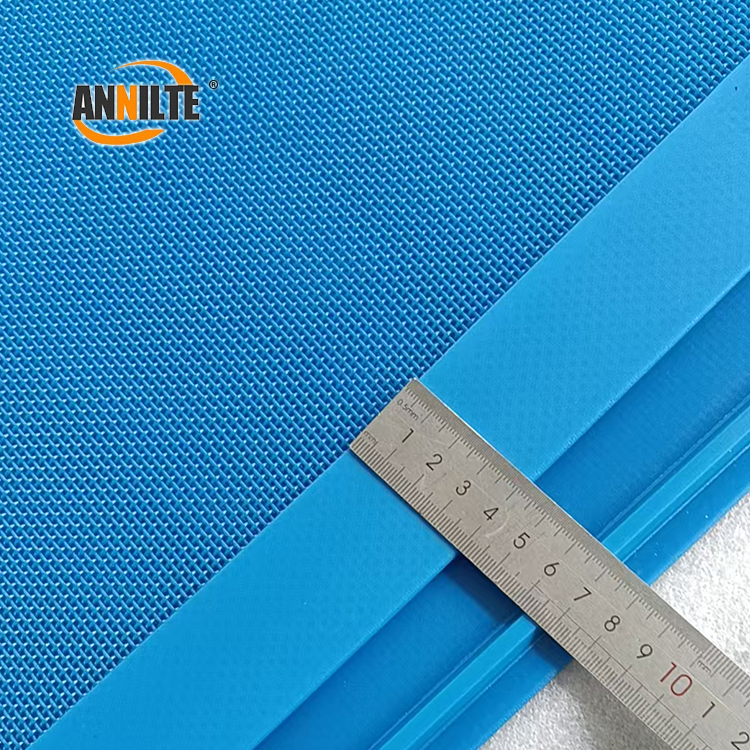

1. High-Strength PET Mesh Base: The woven polyester mesh is breathable and permeable, allowing hot air or water to pass through while conveying—enabling simultaneous drying, dewatering, or cleaning.
2. Corrugated Sidewall Skirts: Vulcanized seamlessly to the base, these flexible walls prevent spillage and can be customized in height to match material volume.
3. Transverse Baffles (Cleats): Fixed between the skirts, these partitions create independent material pockets, enabling high-angle lifting (up to 75°) without slippage.
4. Bottom Tracking Guide Bars: Vulcanized onto the return side, these PU strips interface with machine guide grooves for positive tracking, reducing maintenance needs.

Why Choose This Polyester Mesh Belt? Top 5 Advantages

1. Spill-Free Inclined Conveying : The skirt+baffle design allows steep-angle (0°-75°) lifting without material rollback, saving floor space and eliminating the need for longer horizontal conveyors.
2. Zero Edge Leakage : Seamless vulcanized skirts with double-sealed edges prevent fine powders, liquids, or granules from escaping, reducing waste and keeping work areas clean.
3. Automatic Belt Tracking : Bottom guide bars actively steer the belt, preventing edge damage, mistracking, and unscheduled downtime—especially critical for long-span or multi-tier systems.
4. Drying & Conveying in One Step : The open polyester mesh structure allows hot air and water to penetrate freely, so materials are dried, dewatered, or rinsed during transport, simplifying system design.
5. Easy to Clean & Maintain : The smooth, non-porous PU surface of skirts and baffles resists material adhesion. The open mesh is easy to flush with high-pressure water, meeting strict hygiene standards for food and pharmaceutical applications.

Main Application Industries

• Food & Fruit/Vegetable Processing: Ideal for drying herbs, chili, nuts, tea, or washing and dewatering fruits and vegetables. The food-grade PU option ensures compliance with FDA/HACCP guidelines.
• Environmental / Sludge Dewatering: Used on belt filter presses for sludge dewatering. High side skirts prevent sludge overflow, while the mesh allows efficient water drainage.
• Chemical & Powder Lifting: For transferring plastic pellets, mineral powders, or feed ingredients at steep angles without dusting or material loss.
• Paper & Nonwoven Industries: Suitable for pulp forming, drying, and dewatering felts where excellent air permeability and dimensional stability are required.
• Agriculture & Aquaculture: Used for seed, grain, or aquatic product washing, sorting, and dewatering lines.
