In modern sludge dewatering and drying operations, the mesh belt is more than a consumable—it is a critical performance component. Its design directly dictates your plant's throughput, the dryness of your final cake, energy consumption, and maintenance intervals. For plant managers and engineers in Europe and North America, choosing a suboptimal belt means accepting higher operating costs, unplanned downtime, and a shorter asset lifespan.
As an engineering-driven manufacturer, Annilte understands these challenges. This guide explores the technical demands, common industry pain points, and how the right liquid filter sludge dewatering drying mesh belt can transform your process efficiency.
1. The Critical Role of Mesh Belts in Sludge Dewatering & Drying
The journey from liquid sludge to a dry, disposable solid relies on two key stages: dewatering (mechanical water removal) and drying (thermal water removal). The mesh belt is the common platform that carries the sludge through both processes.

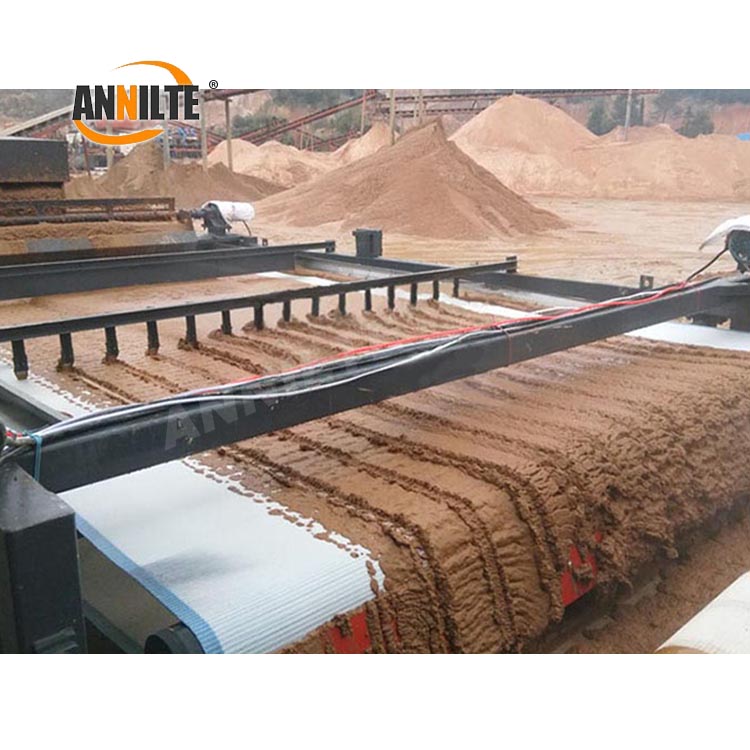

- In a Belt Filter Press, the belt is subjected to high tension (up to 14 bar), shear forces from rollers, and constant high-pressure water jets for cleaning. It must simultaneously provide high water permeability for dewatering while retaining fine solids.
- In a Low-Temperature Dryer, the belt conveys the sludge through hot air streams (typically around 80-140°C). Here, the belt's structure and airflow properties are paramount. Studies show that optimization in belt layers can improve water yield by up to 60.1%.
The belt acts as a combined filter, conveyor, and structural component, making its engineering and material selection fundamental to the plant's success.
2. Top 5 Industry Pain Points (And How Annilte Solves Them)
1: Reduced Throughput & Low Dewatering Efficiency
Slow drainage and incomplete dewatering increase energy costs in downstream dryers and limit overall plant capacity.
Our Solution: Annilte's precision-woven polyester mesh belts are engineered with optimized permeability. Our Sludge Dewatering Filter Belts provide an optimal balance between open area (for maximum water release) and a precise pore structure to capture solids (≥95% capture rate). This accelerates the dewatering phase, enabling higher throughput.
2: Frequent Belt Failures & High Replacement Costs
Belt stretching, edge fraying, and seam failure lead to frequent, costly replacements and unscheduled downtime.
Our Solution: Our belts are constructed from high-tenacity PET monofilament, offering tensile strengths of 800–1200 N/cm and low elongation (≤10% under load) to maintain tracking and tension over years of service. We utilize specialized edge treatments and advanced endless splicing or SS clipper seams, whose joint strength matches the belt body, dramatically extending service life to 8–18 months in demanding applications.
3: Mistracking & Edge Damage
Belt wandering leads to uneven wear, material spillage, and potential damage to the press frame.
Our Solution: Annilte belts can be integrated with bottom guide bars (tracking strips) , which interface with guide slots on the press frame to ensure positive, automatic tracking. This eliminates lateral drift and the associated maintenance issues.
4: Chemical Attack & Temperature Degradation
Exposure to aggressive industrial effluents or high drying temperatures can degrade belt materials, causing premature failure.
Our Solution: We use 100% virgin polyester, renowned for its exceptional resistance to acids and alkalis (stable in pH 2-12) and biological degradation. Our belts are stable for continuous operation at temperatures up to 90-120°C, making them suitable for most thermal drying applications.
5: High Operating & Maintenance Costs
The cost of the belt is only the beginning. Poor performance leads to higher energy use, more polymer consumption, and increased labor for cleaning and repairs.
Our Solution: Annilte's "Green Factory" production and ISO-certified processes ensure consistent quality. By optimizing dewatering efficiency, our belts help reduce polymer flocculant consumption and lower the moisture content of the cake—cutting downstream drying time and disposal fees.
3. Technical Spotlight: Annilte's Polyester Filter Mesh Belt (Product Features)
Our 100% Polyester Fabric Sludge Dewatering Filter Mesh Conveyor Belt is the flagship solution for belt filter presses and dryers.
Key Technical Specifications:
| Parameter | Typical Value/Range | Benefit for Your Plant |
|---|---|---|
| Material | PET Monofilament/Multifilament | Monofilament maximizes airflow; multifilament improves solids capture. |
| Tensile Strength | Longitudinal ≥800–1200 N/cm | High-strength models exceed 1000 N/cm to handle high-tension presses without stretching. |
| Elongation | ≤10% (operating condition) | Low elongation reduces belt-tracking issues and tension adjustments. |
| Air Permeability | 5–12 m³/m²·h (customizable) | Municipal sludge: 5–8; coarse mineral sludge requires higher values for optimal drainage. |
| Pore Size | 30–150 μm (customizable) | Activated sludge: 30–50 μm; mineral slag: 100–150 μm. |
| Temperature Range | Continuous: ≤80°C / Short-term: up to 120°C | Safe for most belt dryers and standard dewatering applications. |
| Thickness | 1.8–2.5 mm | High-pressure zones (>6 bar) require ≥2.2 mm for durability. |
| Custom Width | Up to 4,000 mm | Fits standard and custom press models. |
4. Product Customization: A "Tailored" Belt for Your Exact Machine
No two plants or presses are identical. Annilte's engineering advantage is our ability to provide a truly customized solution.
Based on your press model, sludge type, and process parameters, we can tailor:
- Permeability & Pore Size: To match your specific sludge's floc size and drainage characteristics.
- Thickness & Tensile Strength: To withstand the specific pressure profile of your belt filter press.
- Edge Finish & Joint Type: Choose from steel clipper seams, endless splices, or other options to ensure a perfect fit.
- Special Add-Ons: Integrate features like skirts, baffles, guide bars, or specialized sealing to prevent spillage or aid in inclined conveying.
Our team of 35 R&D technicians and 16 German-imported automated production lines ensure that even complex custom belts are delivered with precision and speed.
5. The Annilte Promise: Quality & Supply Chain Security
European and North American customers require a partner they can trust for quality and delivery. Annilte is an SGS Gold Supplier and holds ISO quality management and RoHS environmental certifications.
- Quality Assurance: Our manufacturing process follows stringent quality control, from yarn selection to final inspection.
- Supply Chain Reliability: We maintain a safety stock of over 400,000 m² of raw materials. For urgent needs, we can ship products within 24 hours.
- Proven Track Record: We proudly serve 18 Fortune 500 companies and have provided customized solutions for over 2,000 industry segments globally.
