In a large-scale automated poultry facility, a snapped manure removal belt is more than a mechanical failure—it is a production emergency. When the belt stops, manure accumulates, ammonia levels rise, and the bio-security of your flock is at risk.

While emergency repairs are sometimes necessary to keep the farm running, understanding how to repair a poultry manure belt correctly—and more importantly, why it failed—is essential for long-term operational stability.

At ANNILTE, with 17 years of experience in industrial polymer engineering, we have analyzed thousands of belt failures. This guide provides the technical steps for professional repair and the engineering solutions to prevent these issues from recurring.

Diagnosing the Failure

Before reaching for the welding tools, you must identify the cause of the break.

1. Joint Failure: Did the belt snap at the weld? This usually indicates poor Melt Index (MI) stability in the original material.
2. Transverse Cracking: Did it crack across the width? This is often a sign of winter brittleness in low-quality recycled PP.
3. Edge Fraying: Is the edge torn? This is caused by tracking deviations (running off-center) rubbing against the cage frame.

Professional Hot-Melt Welding Steps

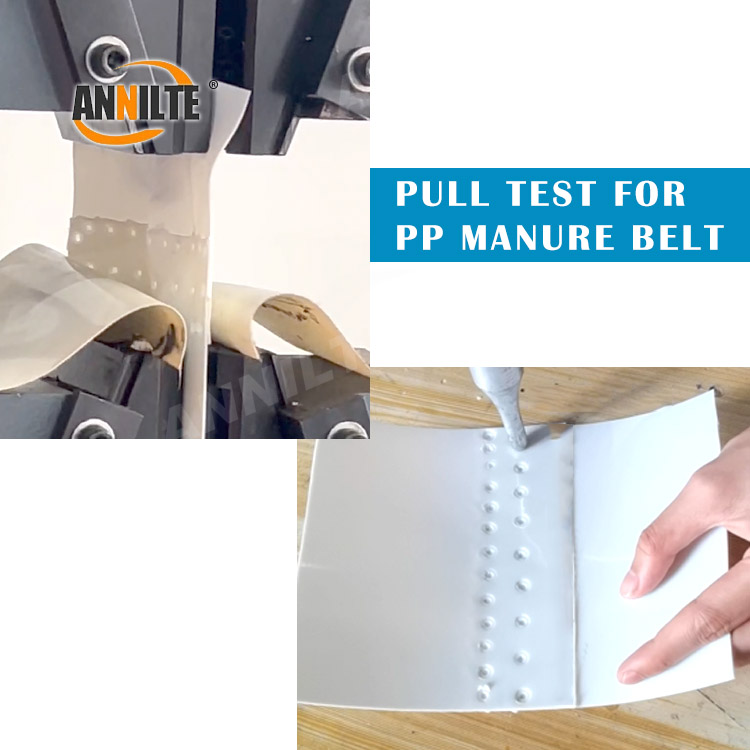

The most reliable way to repair a polypropylene (PP) manure belt is through thermal hot-melt welding or ultrasonic welding.

1. Square the Edges

Use a professional belt cutter to ensure both ends are perpendicular to the belt's length. If the cut is even slightly angled, the belt will never track straight after repair.

2. Clean and Dry

Poultry manure is acidic and greasy. Any residue left at the joint will prevent a molecular bond. Clean at least 5cm of each end with a high-purity degreaser.

3. Applying Heat

If using a hot-melt machine, set the temperature between 220°C and 240°C.

• Technical Tip: The material must reach its molten state simultaneously on both sides. If one side is hotter, the joint will be brittle.

4. Pressure and Cure

Apply uniform pressure across the width. At ANNILTE, we source our raw materials from Fortune 500 suppliers to ensure absolute Melt Index (MI) stability. This means that during repair, our belts bond more predictably and strongly than those made with recycled plastics.

Moving Beyond "Emergency Patching"

While you now know how to repair the belt, the real question is: How can you stop it from breaking again? Most repairs fail because the underlying material is already degraded by UV or ammonia.

The Problem with "Stretched" Belts

If your belt has snapped because it was stretched too thin (narrowing), a repair is only a temporary bandage. A stretched belt has already lost its internal structural integrity.

The ANNILTE Permanent Solution: We utilize HST (Heat Setting Technology) Secondary Setting and Co-polymer Molecular Chains (tensile strength ≥10N/mm²).

• Zero-Stretch Stability: Our belts are engineered not to stretch or narrow. By maintaining their original dimensions, they put less strain on the drive motor and are far less likely to snap due to over-tensioning.

Preventing Winter Cracking

If your repair was prompted by a brittle break in cold weather, your current belt is likely missing the necessary elastomers.

The ANNILTE Permanent Solution: We stabilize the belt’s elastic modulus within the 800-1000 MPa "High-Toughness Window." Even after a successful repair of an old belt, it will remain brittle in the cold. Upgrading to an ANNILTE belt ensures resilience down to -40°C, preventing the need for repairs in the first place.

 Preventative Tracking Adjustment

A belt that runs off-center will eventually rub through and snap. After any repair, you must re-calibrate your rollers.

• The HST Advantage: Because ANNILTE belts have eliminated internal stress through HST Technology, they have a natural tendency to run straight. This "Zero-Tracking" reliability means that once you install our belt, the risk of edge-related tears is virtually zero.

Repair vs. Replace

Knowing how to repair a poultry manure belt is a vital skill for any farm manager. However, every minute spent welding is a minute lost in production. If you are repairing the same belt multiple times a year, the material has reached its end of life.

By upgrading to ANNILTE high-precision PP belts, you aren't just buying a replacement; you are investing in 17 years of engineering designed to make your welding kit obsolete.
