In the world of high-speed synchronized transmission, the AT10 profile represents the pinnacle of metric-pitch polyurethane (PU) belts. Known for its deeper tooth engagement and higher torque capacity compared to the standard T10, the AT10 is the "engine" of modern automated production lines. However, as speeds increase, two engineering challenges emerge: Friction and Noise.

This is where the application of specialized Green Nylon Fabric (NFT/NFB) transforms a standard belt into a high-performance industrial asset. At ANNILTE, we have refined the bonding technology required to integrate these fabric layers into our PU timing belts, ensuring that your machinery runs smoother, quieter, and longer.

1. The Physics of the "Green Layer": What is NFT and NFB?

In the industrial belt sector, "Green Fabric" refers to high-tenacity nylon woven fabric. Depending on the application, we apply it to two surfaces:

• NFT (Nylon Fabric on Teeth): The green cloth is bonded to the tooth side. This is the most common configuration for high-speed transmission. The fabric acts as a permanent lubricant, reducing the coefficient of friction as the tooth engages with the pulley.
• NFB (Nylon Fabric on Back): The cloth is applied to the back of the belt. This is critical for conveying applications where products (like glass, wood, or cardboard) slide along the back of the belt, or when the belt passes over back-tensioning idlers.

2. Noise Abatement: Solving the High-Frequency Whine

A common complaint in clean-room environments and packaging halls is the high-pitched "whine" of PU belts. As the hard polyurethane teeth hit the metal pulley at thousands of RPM, the mechanical impact generates significant acoustic noise.

The ANNILTE Solution: Our green nylon fabric provides a dampening effect. It cushions the contact between the tooth and the pulley groove, significantly reducing vibration. For factories aiming for better OSHA compliance or a better worker environment, switching to AT10 NFT belts is a low-cost, high-impact acoustic upgrade.

3. Friction Management and Energy Efficiency

Standard PU has a high coefficient of friction. In high-speed indexing or long-distance conveying, this friction translates into heat buildup and higher energy consumption by the drive motor.

• Heat Reduction: The nylon layer prevents the PU material from overheating, which is the leading cause of premature aging and "tooth shear."
• Power Savings: By reducing the resistance at the pulley interface, our green fabric belts allow for smoother startups and lower continuous power draw, contributing to your facility's energy ROI.

4. Enhanced Wear Resistance in Abrasive Environments

In industries like wood processing or stone cutting, dust and debris often find their way into the drive system.

Engineering Resilience: The high-density weave of ANNILTE’s green fabric acts as a protective shield. It prevents abrasive particles from embedding directly into the soft PU matrix. This "armor" extends the life of the tooth profile, maintaining precision positioning long after a standard belt would have started to "skip" or lose its pitch accuracy.

Engineering for Longevity and Silence

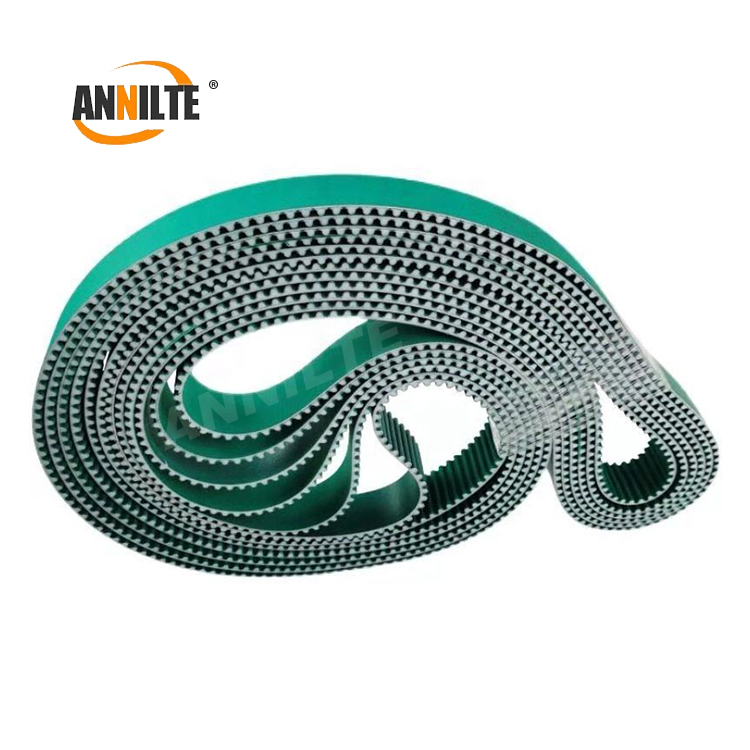

A PU timing belt AT10 with green fabric is more than just a drive component; it is a specialized engineering solution for those who demand precision without the penalty of noise and friction. By choosing ANNILTE, you are partnering with a manufacturer that understands the nuances of material bonding and thermal stability.

Is your transmission system too noisy or wearing out too fast? Contact the ANNILTE technical team today for a technical datasheet and a custom quote for our NFT/NFB high-performance belts.
