In the world of precision leather and fabric cutting, the Gerber DCS3500 remains a benchmark for reliability. As a static cutting system, its ability to deliver intricate patterns depends entirely on how securely the material is held in place. This is where the Gerber DCS3500 spare parts belt becomes the most critical component of your operation.

A conveyor belt for a DCS3500 is not just a moving surface; it is a high-tech vacuum interface. If your spare parts belt suffers from hole misalignment, dimensional stretching, or surface irregularities, your high-speed cutter loses its edge.

At ANNILTE, we have leveraged 17 years of industrial polymer engineering to develop a specialized range of perforated PU belts specifically optimized for the Gerber DCS3500 system. Here is why choosing the right spare part is a decision that impacts your total production yield.

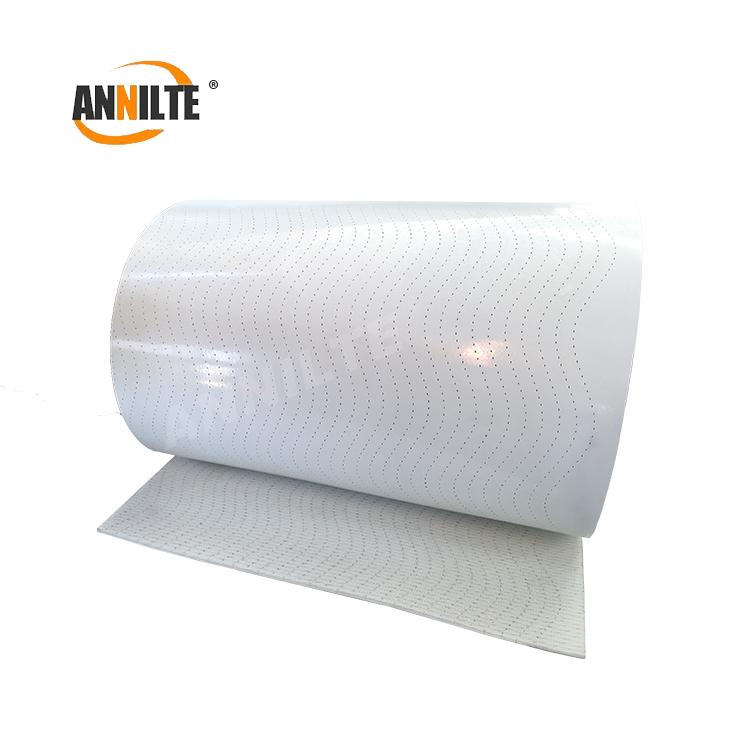

1. CNC Precision Perforation: The Secret to Strong Suction

The Pain Point: The Gerber DCS3500 relies on powerful vacuum suction to keep single-ply materials, especially slippery leathers, from moving during the cut. If the holes in your spare parts belt are inconsistently sized or spaced (a common flaw in low-end aftermarket belts), the suction is uneven. This leads to "material shifting," resulting in jagged edges and wasted fabric.

The ANNILTE Technical Solution: Every ANNILTE DCS3500 belt is manufactured on CNC Precision Drilling Lines.

• Micron-Level Accuracy: We maintain a hole position tolerance of ±0.1mm.
• Optimized Airflow: This precision ensures perfectly uniform vacuum distribution across the entire cutting table. Whether you are cutting a small automotive trim piece or a large upholstery panel, the material stays locked in place, pass after pass.

2. Zero-Stretch Precision: The Power of HST Technology

The Pain Point: In CNC cutting, the belt's pitch (movement accuracy) is everything. If the spare parts belt stretches even 1% under tension, your digital patterns will be distorted. A circle becomes an oval, and nested parts overlap.

The ANNILTE Technical Solution: Our PU belts for the DCS3500 are processed through our proprietary HST (Heat Setting Technology) Secondary Setting.

• Structural Stability: This creates a Co-polymer Molecular Chain with a tensile strength of ≥10N/mm².
• Dimensional Integrity: The belt maintains near-zero permanent elongation. By ensuring the belt never narrows or stretches, we guarantee that your Gerber software’s digital coordinates translate into physical cuts with absolute accuracy.

3. High-Integrity Joints: No "Knife Jump"

The Pain Point: The joint (splice) is the most vulnerable part of any DCS3500 belt. If the joint is thicker than the belt body or has a protruding lip, it creates a "bump" as it passes under the cutting head. This causes the blade to "jump," leading to skipped cuts or broken knife tips.

The ANNILTE Technical Solution: We source our raw materials from Fortune 500 suppliers to ensure absolute Melt Index (MI) stability.

• Flush Splicing: Our specialized joining process creates a bond with less than 5% fatigue variation after 10,000 cycles.
• Smooth Surface: The joint is precision-ground to be perfectly flush, ensuring the cutting head glides over the seam without any disruption to the cutting depth or the material.

4. 100% Virgin PU for Extreme Durability

The Pain Point: Gerber DCS3500 machines often run 24/7 in high-production environments. Belts made with recycled PU or fillers quickly develop surface cracking and "edge fraying," creating plastic dust that can contaminate expensive fabrics.

The ANNILTE Technical Solution: We use only 100% Virgin Polyurethane (PU).

• Resilience Window: By stabilizing the modulus within the 800-1000 MPa window, we provide a surface that is firm enough for precision cutting but resilient enough to resist abrasion. Our spare parts belts last 30-50% longer than standard aftermarket options, significantly lowering your Total Cost of Ownership (TCO).

5. HST Zero-Tracking: Protecting Your Rollers

The Pain Point: Tracking deviation (running off-center) is a major risk for static cutters. A wandering belt rubs against the machine frame, damaging the belt edges and putting unnecessary strain on the drive motor.

The ANNILTE Technical Solution: By eliminating internal stresses through HST technology, we ensure that our DCS3500 belts have a perfectly uniform density across their entire width.

• True Tracking: The belt stays centered without constant manual adjustment. This "Zero-Tracking" reliability ensures a clean, dust-free environment, which is vital for high-end fashion and automotive interior production.

Why Choose ANNILTE for Your Gerber DCS3500 Parts?

ANNILTE is more than a supplier; we are a high-precision component partner for the CNC industry.

• 17 Years of Expertise: We understand the technical nuances of Gerber, Zund, and Lectra systems.
• Customization: We offer exact dimensions and custom perforation patterns for the DCS3500 and other Gerber models.
• Global Export Success: Trusted by 20,000+ clients in over 100 countries to deliver stability where others offer only generic belts.
