On Heidelberg presses in printing shops, in twisting machines at textile mills, and in packaging equipment on tobacco production lines, a critical transmission component is quietly operating at high speeds: the nylon laminated belt.



What Is a Nylon Laminated Belt?

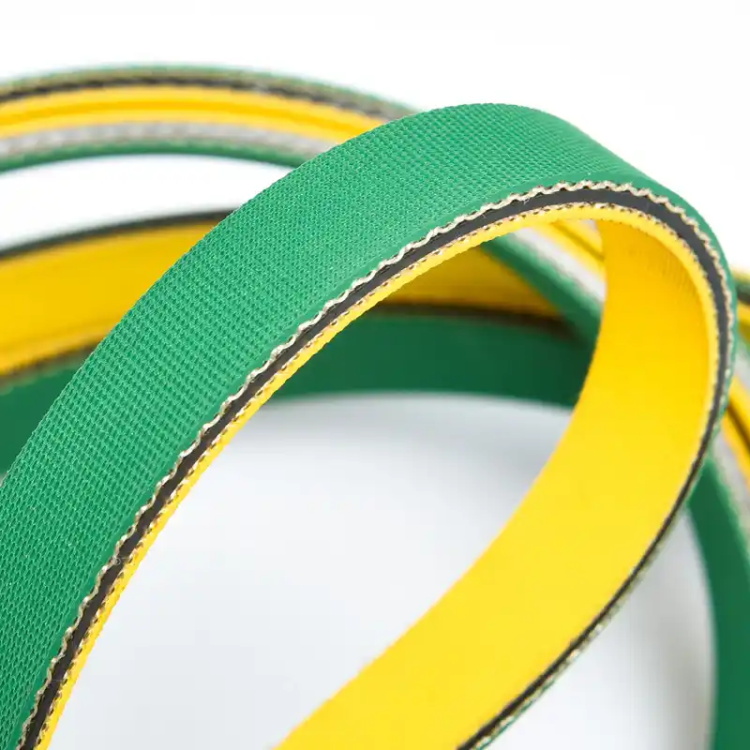

Many people may find the term “laminated belt” unfamiliar at first. In fact, its structure can be visualized as a sandwich:

Middle Layer (Skeleton Layer): This is a layer of high-strength nylon laminate. Like the meat patty in a sandwich, it serves as the “skeleton” of the entire belt, responsible for withstanding tensile forces and ensuring the belt does not break or stretch during high-speed operation.

Top and bottom layers (working surfaces): Depending on the operating conditions, the surface is covered with different materials, such as wear-resistant rubber or traditional cowhide. These layers act like the bread in a sandwich, coming into direct contact with the pulleys and materials to provide protection and transmit power.

This unique sandwich structure gives nylon-laminated belts a “natural” advantage over older-style canvas belts or V-belts.



Why Choose Nylon-Laminated Belts? Four Key Reasons for Peace of Mind and Effort Savings

When your equipment requires high-speed operation, frequent starts, or works in very tight spaces, nylon-laminated belts are often the ideal choice. They primarily offer the following four major benefits:

1. High Tensile Strength

Thanks to the nylon laminate core, these belts have exceptionally high tensile strength and hardly stretch over time like ordinary belts (we refer to this as “low elongation”). This means that once installed, it reliably transmits power, reducing the frequency of equipment downtime for adjustments.

2. Long Service Life

We use high-quality materials for the surface layer (such as imported neoprene rubber), giving it excellent resistance to wear, oil, and fatigue. Even in high-speed, repetitive bending applications, it performs reliably without cracking or wearing out easily, naturally extending its service life.

3. Low Noise

Compared to chain or gear drives, nylon-based flat belts operate very smoothly and quietly, effectively absorbing vibrations. This means less noise in your workshop and an improved working environment.

4. High Transmission Efficiency

The belt is lightweight, flexible, and has minimal flex loss, resulting in very high transmission efficiency. Simply put, the energy output from the motor is transferred more quickly to the working components, avoiding unnecessary energy waste and leading to long-term energy savings.



Which Type of Nylon Laminated Belt Does Your Production Line Need?

Due to their wide range of applications, nylon laminated belts have evolved into various models to suit different equipment:

If your equipment requires high-speed operation—such as textile industry dragon belts (air-jet spinning, twisting machines) or spindle belts—which demand belts that are both lightweight and strong, we recommend models specifically designed for high speeds.

If your equipment needs to transmit significant power—such as paper machines, ventilators, mixers, and other heavy-duty equipment—our heavy-duty flat transmission belts are capable of handling operations in oily or harsh environments.

If your equipment requires high precision—such as printing machinery, SMT equipment in the electronics industry, or circuit board conveyor lines—we offer lightweight conveyor belts with precise thickness and smooth operation to ensure products are positioned accurately.

Summary

Whether your equipment is used in tobacco, textiles, paper manufacturing, electronics, printing, or packaging, choosing the right nylon-backed belt means selecting a guarantee of “stability, reliability, and durability” for your production line. We offer slat belts in a variety of thicknesses ranging from 1 mm to 6 mm, as well as multiple material combinations (such as XNX double-sided rubber, PNX single-sided rubber and single-sided leather, and PNP double-sided leather), and can customize them to fit the width of your equipment.

If you are looking for a drive belt that ensures smoother equipment operation and easier maintenance, please feel free to contact us. We will provide you with reliable product selection advice.
