Why Packaging Machines Are the Harshest Test for Any Conveyor Belt

A packaging machine does three things simultaneously: it moves film precisely, it applies heat to seal that film, and it cycles at high speed for thousands of cycles per shift. The conveyor belt sits at the intersection of all three demands.

Standard PVC or PU belts fail in this environment for predictable reasons. When exposed to the radiant and conductive heat of sealing bars—often exceeding 200°C at the contact point—PVC softens and PU hardens. The film itself, usually PE, PP, or BoPP, becomes tacky the moment it is heated. Any surface imperfection, including the subtle bump of a spliced joint, disrupts film tension and causes seal misalignment.

The result is not a belt failure in isolation. It is bag length variation, zipper deformation, seal weakness, and unplanned cleaning stops—all traceable to a component that costs a fraction of the machine but dictates its output quality.

---

What “Non-Stick” Must Mean for Packaging Film

The term “non-stick” is used loosely across supplier websites. For packaging machine buyers, it must translate into a measurable release performance against specific materials.

Annilte’s silicone surface is formulated for low surface energy, which prevents molten film residue from anchoring to the belt. In zipper bag and pouch applications, this directly addresses the most common production complaint: adhesive buildup from hot-melt zipper films and sealing layers.

The practical consequences are straightforward:

• Cleaner release after each seal cycle, reducing the need for solvent wiping during a shift
• Consistent film tracking, because the belt surface does not develop tacky patches that alter friction
• Longer belt life, because the surface is not being repeatedly scraped or chemically cleaned

For buyers evaluating competing suppliers, ask a direct question: What is the residual adhesion rate against the specific film you run? A supplier who cannot answer with data—or offer a sample for your own seal test—is selling a commodity, not a solution.

---

Seamless vs. Spliced: The Joint Is the Weak Point

Packaging machines do not tolerate joint bumps. On a high-speed bottom-seal or zipper bag line, every revolution of a spliced belt introduces a slight thickness variation at the joint. This creates periodic vibration, uneven film tension, and in precision applications like slider zipper attachment, measurable misalignment.

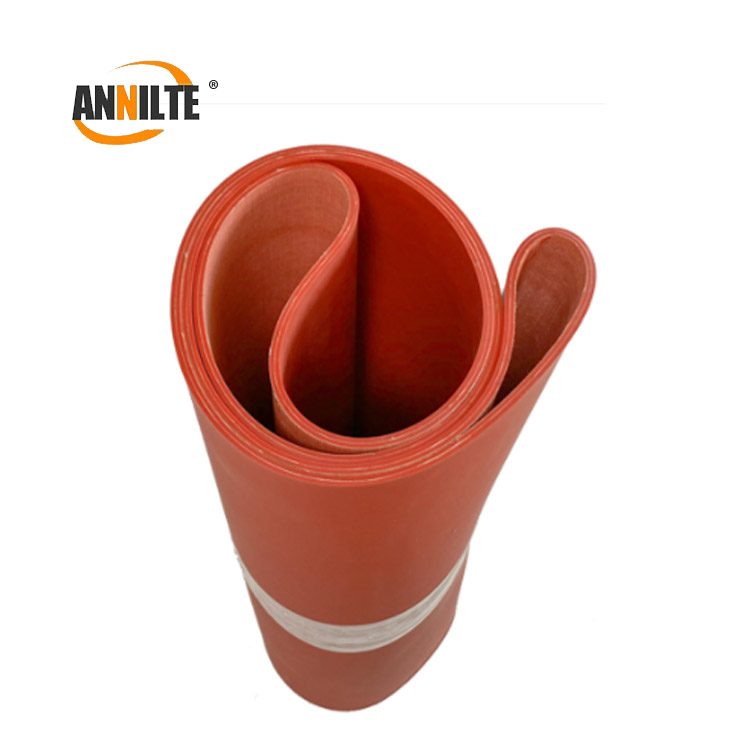

A seamless (endless) belt eliminates this variable entirely. Annilte manufactures seamless silicone belts using drum vulcanization, producing a continuous loop with uniform thickness and hardness across the full circumference. There is no splice, no transition zone, and no fatigue point where the joint would otherwise crack or delaminate under repeated thermal cycling.

This is not a marginal improvement. For bag makers running Totani, Karlville, Lung Meng, or Doypack lines, the shift from spliced to seamless construction is often the difference between consistent bag dimensions and daily tension adjustments.

---

Temperature Ratings: Continuous vs. Intermittent Matters

Packaging machine belts experience two distinct thermal conditions:

• Continuous exposure: The ambient heat near sealing stations and within shrink tunnels. Annilte belts are rated for continuous operation from -60°C to +250°C.
• Intermittent contact: The momentary contact or radiant heat from sealing jaws, which may spike higher than the ambient temperature.

A belt rated only to 180°C continuous will harden and lose flexibility prematurely when used near sealing bars that repeatedly approach 220–250°C. The silicone compound used in Annilte packaging belts maintains elasticity across the full range, which preserves tracking stability and release performance over the belt’s service life.

---

Compatibility: The Machines This Belt Is Built For

Annilte silicone belts are specified for packaging equipment where heat and stickiness are unavoidable:

Customization is available across width (10mm to 3 meters), thickness (1.0mm to 5.0mm), Shore A hardness, and color (white, red, blue) to match specific film types and machine geometries.

---

Sourcing Checklist: What to Ask Before You Order

Before committing to a supplier for packaging machine belts, verify these points:

Annilte maintains a raw material safety stock of over 400,000 square meters, with 16 fully automated production lines and emergency backup capacity. Custom orders can ship within 7–12 days, and emergency orders within 24 hours for stock sizes.

---

Why Annilte: Manufacturing Depth for Packaging OEMs

Annilte has manufactured conveyor belt solutions for 17 years, serving 18 Fortune 500 companies and over 20,000 customers globally. Our R&D team of 35 engineers has customized belts for more than 1,780 industry segments, including packaging machinery OEMs and end-users across Europe, North America, and Southeast Asia.

We hold ISO 9001 and RoHS certifications, are an SGS Gold Supplier, and maintain FDA-compliant material documentation for food-contact packaging applications.

Next step: Send us your machine model, film type, and belt dimensions. We will recommend the correct construction and provide a quote within 24 hours. Free samples are available for qualified buyers to run seal tests on their own equipment.
