Eliminate discoloration. Prevent sticking. Achieve flawless pattern transfer—belt after belt.
In quartz stone heat transfer printing, the conveyor belt is not just a moving surface—it is a critical component that directly determines yield rate and finished product quality. If you are facing issues like pattern discoloration, sticking, or blurred transfers, the root cause may be your belt.
Annilte’s specially developed silicone conveyor belt for quartz stone heat transfer printing solves these problems at the source.
Why Standard Conveyor Belts Fail in Heat Transfer Printing
Quartz stone heat transfer printing is an demanding process. It combines high temperature, high pressure, and chemical exposure—conditions that ordinary belts are not designed to handle.
Here are the four most common failure points:
| Problem | What Happens |
|---|---|
| Insufficient heat resistance | Standard belts withstand only 100–150°C, but the process requires 200°C+. Without adequate heat, patterns won’t penetrate properly, resulting in dull, faded prints. |
| Chemical contamination | At high temperatures, ordinary belts release sulfur compounds or react with ink solvents, causing discoloration, yellowing, or surface spotting—creating large volumes of waste. |
| Rapid aging & distortion | Continuous heat exposure causes ordinary belts to harden, deform, and lose surface flatness. Uneven pressure leads to bubbles, missing pattern areas, and premature belt failure. |
| Sticking & residue | Without anti-adhesion surface properties, ordinary belts cause printed slabs to stick. Forced removal can damage patterns or leave adhesive residues on finished products. |

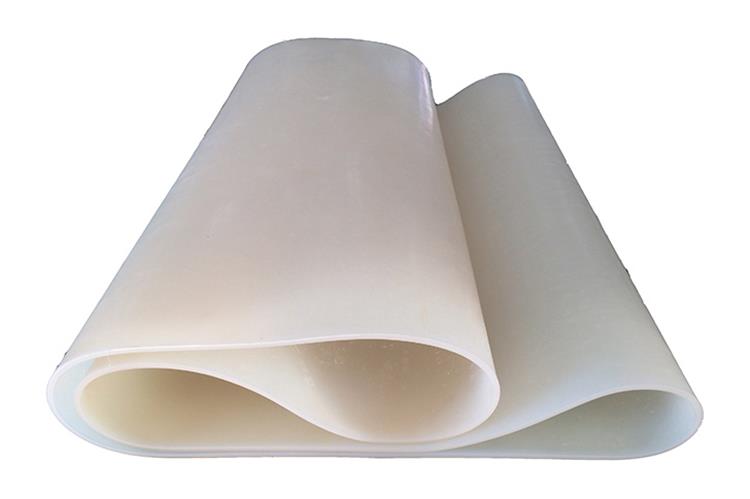

Annilte’s Solution: Silicone Conveyor Belt for Quartz Stone Heat Transfer
Engineered specifically for the quartz stone heat transfer industry, Annilte’s silicone conveyor belt eliminates the four bottlenecks above. Here’s how:
1. High-Temperature Resistance (200–300°C)
Made from specialized silicone compound, this belt withstands sustained temperatures of 200–300°C. It maintains physical stability under continuous heating, ensuring uninterrupted production without belt-related downtime.
2. Excellent Chemical Stability
The silicone material is inert to ink solvents, acids, and alkalis. There is no chemical migration or outgassing. This eliminates discoloration at the source—ensuring that every quartz slab retains its vibrant, true-to-life pattern.
3. Aging Resistance & Consistent Pressure Distribution
The belt remains flexible and resilient even after prolonged exposure to high temperature and pressure. It conforms tightly to the slab surface, ensuring uniform pressure transfer. This prevents bubbles and missed pattern areas, delivering complete, high-definition prints.
4. Easy Release (Non-Stick Surface)
The belt’s surface is designed with hydrophobic and anti-adhesion properties. After the heat transfer process, the quartz slab releases cleanly and instantly—no sticking, no pattern damage, no residue. This also improves production throughput by reducing cycle time.
Technical Comparison: Ordinary Belt vs. Annilte Silicone Belt
| Parameter | Ordinary Conveyor Belt | Annilte Silicone Belt |
|---|---|---|
| Temperature range | 100–150°C | 200–300°C |
| Chemical stability | May react with inks, release contaminants | Inert, zero outgassing |
| Surface properties | Prone to sticking, residue | Easy release, non-stick |
| Pressure distribution | Uneven due to deformation | Uniform, stable contact |
| Service life in high heat | Short, frequent replacement | Extended, lower maintenance |
| Yield impact | High waste, pattern defects | Improved yield, consistent quality |
Applications
Annilte’s silicone conveyor belt is specifically designed for:
- Quartz stone heat transfer printing lines
- Artificial stone surface decoration
- High-temperature digital printing processes
- Any application requiring heat-resistant, non-stick conveying
R&D Team
Annilte has a research and development team consisting of 35 technicians. With strong technical research and development capabilities, we have provided conveyor belt customization services for 1780 industry segments, and gained recognition and affirmation from 20,000+ customers. With mature R&D and customization experience, we can meet the customization needs of different scenarios in various industries.
Production Strength
Annilte has 16 fully automated production lines imported from Germany in its integrated workshop, and 2 additional emergency backup production lines. The company ensures that the safety stock of all kinds of raw materials is not less than 400,000 square meters, and once the customer submits an emergency order, we will ship the product within 24 hours to respond to the customer's needs efficiently.
As a leading Chinese conveyor belt manufacturer with 17 years of industry experience, Annilte is proud to hold both ISO quality management certification and the RoHS environmental directive. Our manufacturing facilities meet “Green Factory” standards, and we are also an internationally recognized SGS Gold Supplier.
We offer a comprehensive range of customizable belt solutions under our own brand "ANNILTE", designed to meet diverse industrial needs.
Should you require further information about our products or capabilities, please do not hesitate to contact us.
