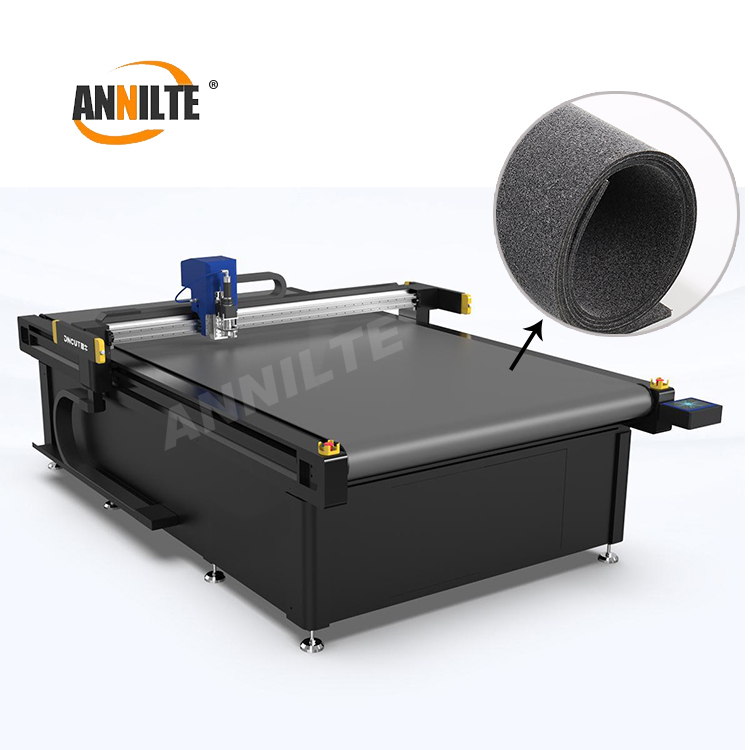

In the world of digital die-cutting and CNC routing, the conveyor belt is not just a moving surface—it is the foundation of your precision. For operators using high-end CNC cutting machines (such as Zünd, Atom, Summa, or Kongsberg), selecting the correct felt thickness is a critical decision that impacts cut quality, tool longevity, and material throughput.

At Annilte, we specialize in manufacturing high-density industrial felt conveyor belts designed specifically for the rigorous demands of the欧美 market. We often hear the same question from our clients: “Should I go with 4mm, 5mm, or 6mm?”

Here is a technical breakdown to help you make the right choice.

The Role of Thickness in CNC Cutting

The primary function of a felt conveyor belt is threefold:

1. Grip: Holding materials in place under vacuum pressure.
2. Sacrifice: Allowing the blade or laser to cut through the material without damaging the machine table or the blade tip.
3. Dust Management: Allowing debris to pass through the felt to the extraction system.

Changing the thickness alters the belt’s stiffness, compression rate, and vacuum permeability. Here is how Annilte’s options stack up.

1. Annilte 4mm Felt Belt: The Precision Specialist

Best for: Laser cutting, fine detail work, and thin materials (paper, film, vinyl).
Compatible Machines: High-speed laser cutters, small-format CNC plotters.

The 4mm belt is the thinnest option in our lineup. It offers the highest level of rigidity and stability. Because it compresses less under vacuum pressure, it provides the flattest surface for materials that require micro-movements.

• Pros:
  • Superior Accuracy: Minimal deflection under the cutting head.
  • Laser Friendly: The lower height reduces the risk of laser beam reflection or back-burning on thin materials.
  • Easy Installation: Lighter weight makes it easier to retrofit on older machines with limited tensioning space.
• Cons:
  • Lower Blade Protection: If you are using deep-kiss cutting or heavy drag knives, the 4mm belt offers less “sacrificial” depth, increasing the risk of cutting through to the machine bed.

2. Annilte 5mm Felt Belt: The Industry Standard (The “Sweet Spot”)

Best for: Multi-substrate cutting (textiles, composites, foam, cardstock).
Compatible Machines: Zünd G3/L3 series, Atom, Summa S2 series, and most standard CNC flatbed cutters.

If you are unsure which thickness to start with, 5mm is the industry benchmark. Annilte engineers the 5mm belt to balance density with flexibility. This is the most common thickness used in欧美automated cutting rooms.

• Pros:
  • Versatility: It handles everything from thin adhesive vinyl to thick corrugated board without needing a belt change.
  • Optimal Vacuum Seal: The 5mm density is calibrated to maintain high vacuum pressure even on porous materials, preventing material shift during high-speed oscillation.
  • Balanced Protection: Provides enough thickness to protect the machine table during kiss-cutting, yet rigid enough to prevent “bounce” when routing heavy materials.
• Cons:
  • None significant. However, for extremely high-volume routing of thick materials (e.g., gaskets, foam), some users prefer the extra margin of the 6mm.

3. Annilte 6mm Felt Belt: The Heavy-Duty Protector

Best for: Heavy routing, gasket cutting, abrasive materials, and through-cutting.
Compatible Machines: Kongsberg XN/V series, heavy-duty oscillating knife systems.

The 6mm belt is designed for protection and longevity. It offers the highest level of “cushion” for the cutting blade. When you are cutting through thick materials or using high-pressure routing tools, the extra 1mm acts as a safety buffer.

• Pros:
  • Extended Blade Life: Reduces impact shock on the blade tip and router bits.
  • Through-Cut Friendly: Perfect for applications where you cut entirely through the material (such as aerospace gaskets or industrial foams) without damaging the underlying conveyor system.
  • Noise Dampening: The thicker fiber structure absorbs vibration, resulting in quieter machine operation.
• Cons:
  • Vacuum Loss: Thicker felts can sometimes require a more powerful vacuum system to achieve the same hold-down force as a 4mm or 5mm belt.
  • Material Lift: If the belt is too thick and soft, extremely thin materials (like paper) might lift at the edges under high-velocity vacuum.

---
